Do you know why IMU is an irreplaceable part of drones?

 **Product**: Micro-Magic Inc’s MEMS IMU U5000, a tactical-grade, high precision, 9-axis IMU for drones.
**Features**:
  44.8×38.6×21.5mm size, 60g weight.
  9-axis with a three-axis magnetometer.
  Gyroscope: ±400º/s dynamic range, 0.5º/h bias instability, 0.08º/√h angular random walk.
  Accelerometer: ±30g dynamic range, 0.01mg bias stability.
  Power: 1.5W, energy-efficient for drones.
**Advantages**: Suitable for drones, lightweight, cost-effective, mass-producible.
**Magnetometer**: Helps with heading/yaw correction.

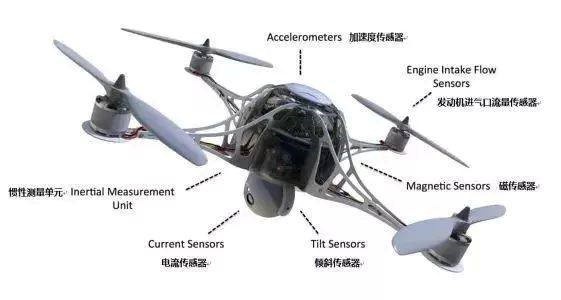

As one of the core components of drones, IMU plays an irreplaceable role. Its high precision, fast response and freedom from external interference enable drones to maintain stable and precise flight and accurate navigation and positioning in complex environments, and can also perform fault diagnosis for drones.

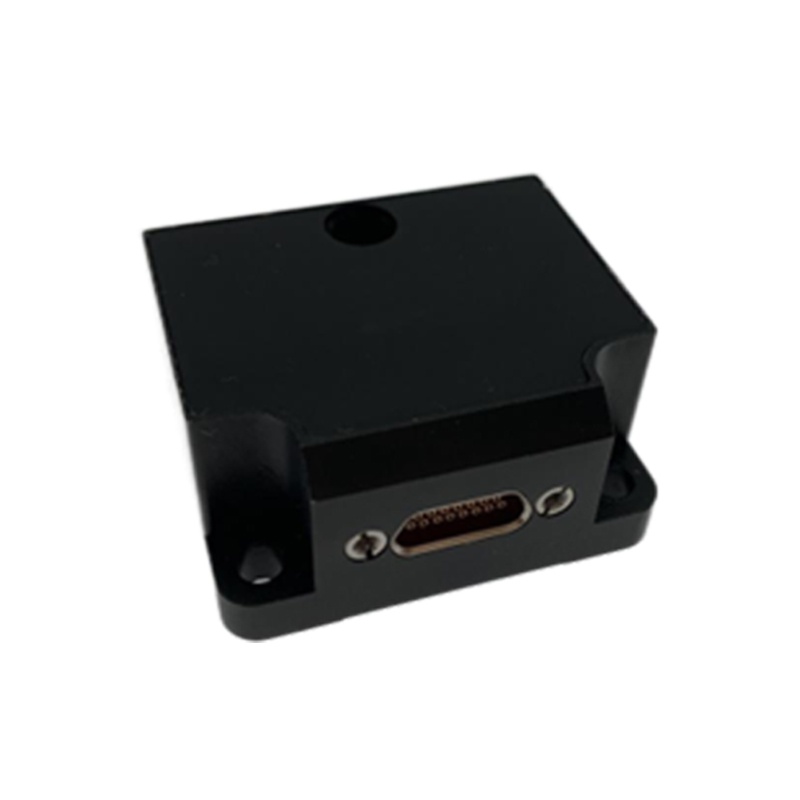

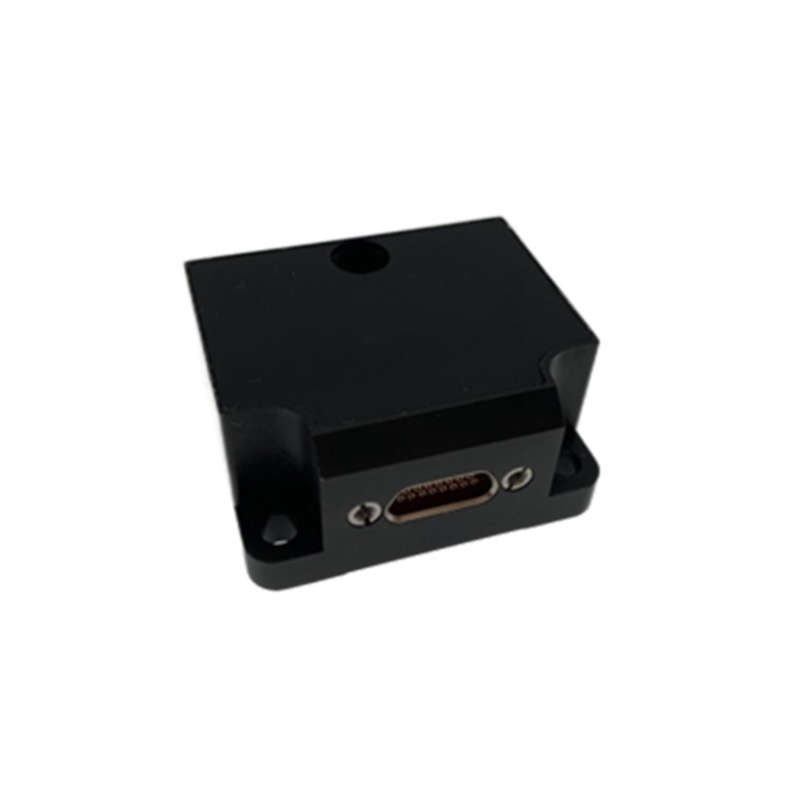

Micro-Magic Inc’s MEMS IMU can achieve high performance while being small in size and light in weight, making it very suitable for drones.We have a tactical-grade IMU U5000 which is low-cost and has an advantage in price. It is a 9-axis IMU with an added three-axis magnetometer. It is only 44.8×38.6×21.5mm in size and weighs 60g. Compared with other IMUs, it is more suitable for drones.

The built-in accelerometer of the IMU cannot be used to detect absolute heading (yaw). The magnetometer in this IMU measures the magnetic field strength in three dimensions, which can help determine the heading of the object as well as roll and pitch, and correct the integrated error of the yaw gyroscope in the sensor fusion algorithm.
The dynamic measurement range of the built-in gyroscope is ±400º/s, the bias instability is 0.5 º/h, and the angular random walk is 0.08º/√h. The dynamic measurement range of the accelerometer is ±30g, the bias stability is 0.01mg (Allen variance).
Considering the flight time requirements of drones, this IMU has a power of only 2W, which can extend the flight time of drones.
This IMU has a short production cycle and can be mass-produced, which is particularly suitable for users with large demands and limited budgets.
If you are interested in this and want to know more, please follow me and send me a message, I will reply immediately. I will update the relevant content later.
