Do you Know What can Make Drones more Stable, Safe and Widely Used?

December 20, 2024

Key Points

Product: Micro-Magic Inc’s MEMS IMU U5000, a tactical-grade, low-cost, 9-axis IMU for drones.

Features:
- Size: 44.8×38.6×21.5mm, Weight: ≤60g
- 9-axis with three-axis magnetometer and barometer
- Gyroscope: ±400º/s dynamic range, bias instability <0.5º/h, angular velocity random walk <0.08º/√h
- Accelerometer: ±30g dynamic range, bias repeatability 0.01mg
- Power: 2W, energy-efficient for extended flight
Advantages: Ideal for drones, lightweight, cost-effective, and customizable for OEM, enhancing stability and performance with magnetometer aiding in heading correction.

The key to achieving autonomous navigation, stable control and precise flight of drones is closely related to IMU, which is one of the core technologies of drone systems. At present, there are also research teams that have developed IMU-centric data-driven diagnostic methods to perform fault diagnosis on drones without the need for additional sensors. Choosing the right IMU can make flight more stable and safer.
Micro-Magic Incs MEMS IMU U5000 and U7000 (can be customized for OEM) can be used in drones. Using MEMS technology, they are small in size, superior in performance, light in weight, low in power consumption, and cost-effective, and are very popular among users.

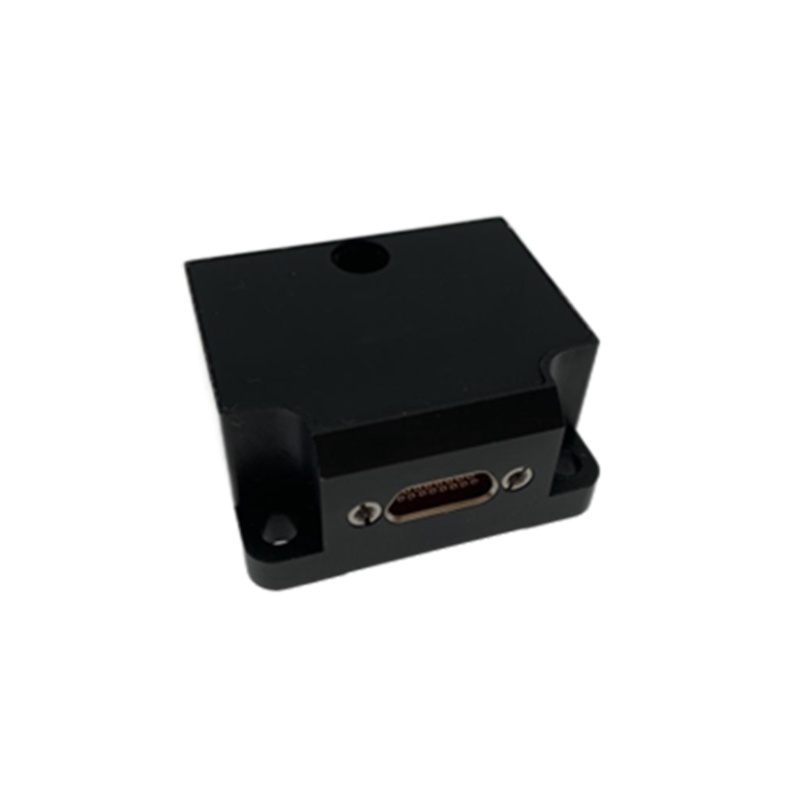

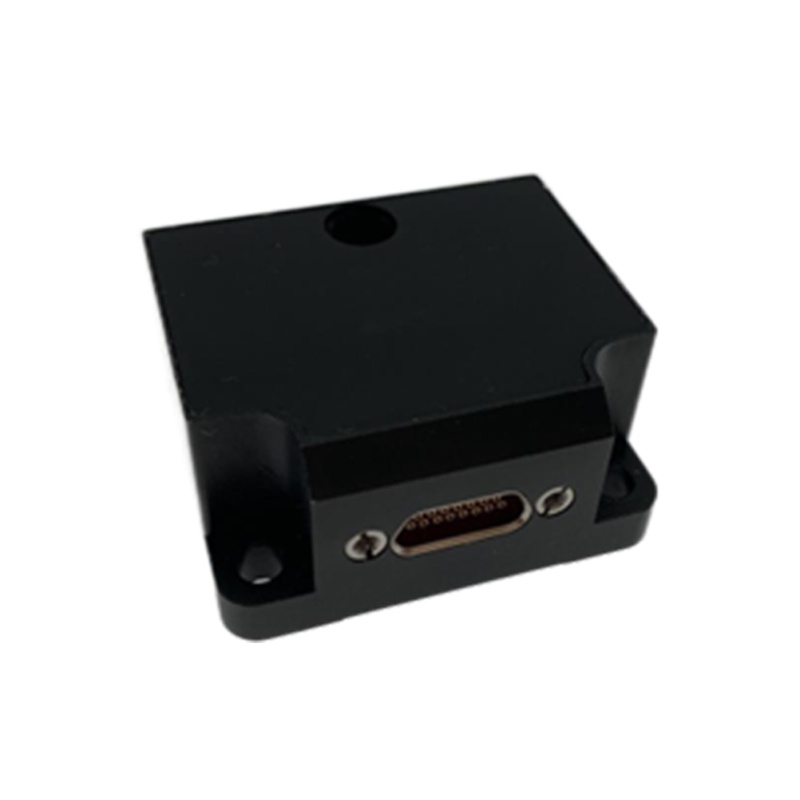

Drones have strict requirements on the size and weight of IMUs. The U5000 has a size of (44.8×38.6×21.5mm(with shell)) and a weight of ≤60g (with shell).

Flight control of drones is one of their most basic functions. MEMS IMU helps drones maintain a stable attitude by providing real-time acceleration and angular velocity data.

The gyroscope measurement range of U5000 and U7000 is ±400deg/s, bias instability <0.5deg/hr, angular velocity random walk <0.08°/√h, accelerometer bias repeatability 0.01mg. At the same time, it has the characteristics of low power consumption, which prolongs the flight time of drones.
It can also combine data from other sensors (such as GPS, magnetometer, etc.) to calculate the precise location and attitude information of the drone for navigation and positioning. When the drone is taking aerial photos, it can maintain extremely high stability to ensure the clarity and stability of the images and videos taken. At the same time, it can also be used as part of the drone’s fault safety system to detect abnormal movements or attitude changes and trigger automatic recovery procedures or emergency landing procedures to protect the safety of the drone and the surrounding environment.
In the design and application of drones, high-performance IMUs are able to provide stable and accurate data under various environmental conditions, such as temperature changes, vibrations, and rapid movements, and perform precise tasks such as aerial photography, logistics transportation, and agricultural monitoring.
MEMS IMU has many applications in the field of drones. They not only improve the performance and stability of drones, but also expand the scope of application of drones. If you are interested in this and want to know more, please follow me and send me a message. I will reply immediately. I will update the relevant content later.
