T7000-E Single Axis Analog Voltage Tilt Module Strong Anti-Interference Long Distance Transmission for Machinery, Robotics, Satellite Antenna

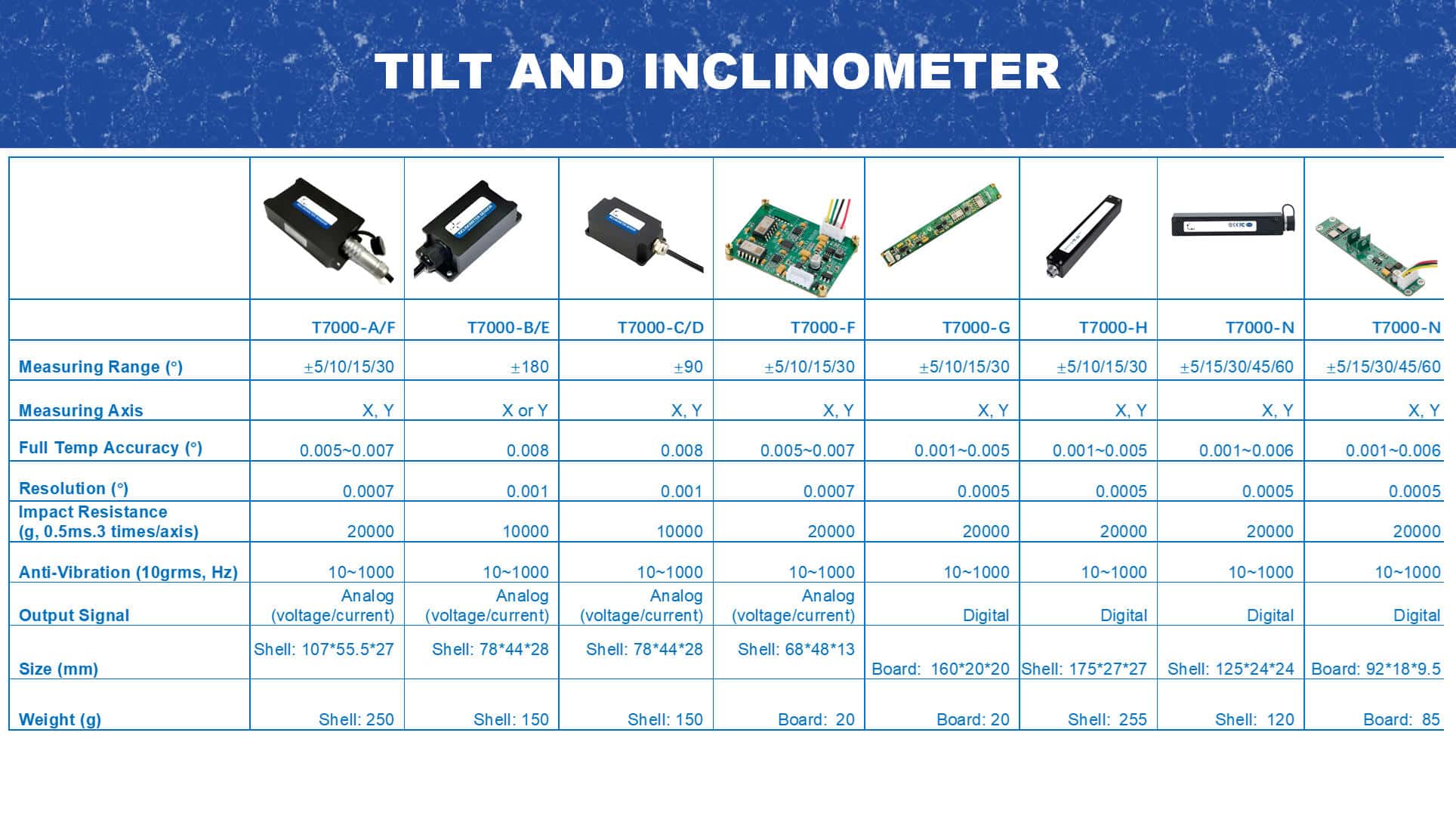

The T7000-G is a fully temperature compensated ultra-high precision dual axis tilt sensor with a resolution of 0.0005°, an accuracy of 0.001°, and a temperature drift of 0.0005°/℃. The output interfaces RS232, RS485, RS422, Modbus, and TTL are optional. The product is a customized inclinometer for measuring the inclination angle of geotechnical and foundation pits. It integrates a 24-bit ARM high-end system internally, with a resolution of 4 seconds and a response frequency of up to 100Hz. Users only need to connect the T7000-G to the data transmission circuit to form a high-precision inclinometer.

T7000-A is a standard industrial high-precision current output dual-axis inclination sensor. RS232 output can be used for long-distance transmission of 2000 meters. The built-in (MEMS) solid pendulum converts the change of the static gravity field into a change of inclination angle by measuring the change of the static gravity field. The product makes accurate compensation and correction for temperature error and linearity error, high accuracy, good anti-vibration, anti-electromagnetic interference circuit, especially suitable for the application of underground non-excavation machinery and other harsh industrial environments.

The T7000-B series is a high-performance current output single axis tilt sensor. The measurement range is 0- ± 180 ° (0-360 °), with a maximum accuracy of 0.008 °. It can output standard 4-20mA, 0-20mA, and 0-24mA analog currents, with RS232 and RS485 options available simultaneously. Good anti-interference characteristics, suitable for long-distance signal transmission. The product is easy to install and use, with multiple output options, resistant to external electromagnetic interference, and strong ability to withstand vibration and impact, suitable for measuring angles in industrial control environments such as surveying and mapping.

The T7000-C series is a high-performance current output dual-axis tilt sensor. The measurement range is dual axis ± 90 ° with a maximum accuracy of 0.008 °. It can output standard 4-20mA, 0-20mA, and 0-24mA analog currents, with RS232 and RS485 options available simultaneously. Good anti-interference characteristics, suitable for long-distance signal transmission. The product is easy to install and use, with multiple output options, resistant to external electromagnetic interference, and strong ability to withstand vibration and impact, suitable for measuring angles in industrial control environments such as surveying and mapping.

The T7000-D series is a high-performance voltage output dual-axis tilt sensor with measurement range ± 90 ° and maximum accuracy of 0.008 °. It can output standard 0-5V and 0-10V analog voltages, with RS232 and RS485 options available simultaneously. Good anti-interference characteristics, suitable for long-distance signal transmission. The product is easy to install and use, with multiple output options, resistant to external electromagnetic interference, and strong ability to withstand vibration and impact, suitable for measuring angles in industrial control environments such as surveying and mapping.

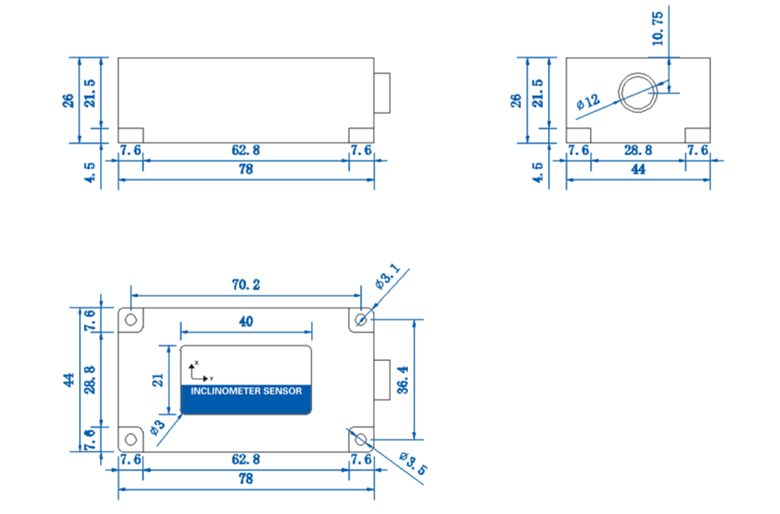

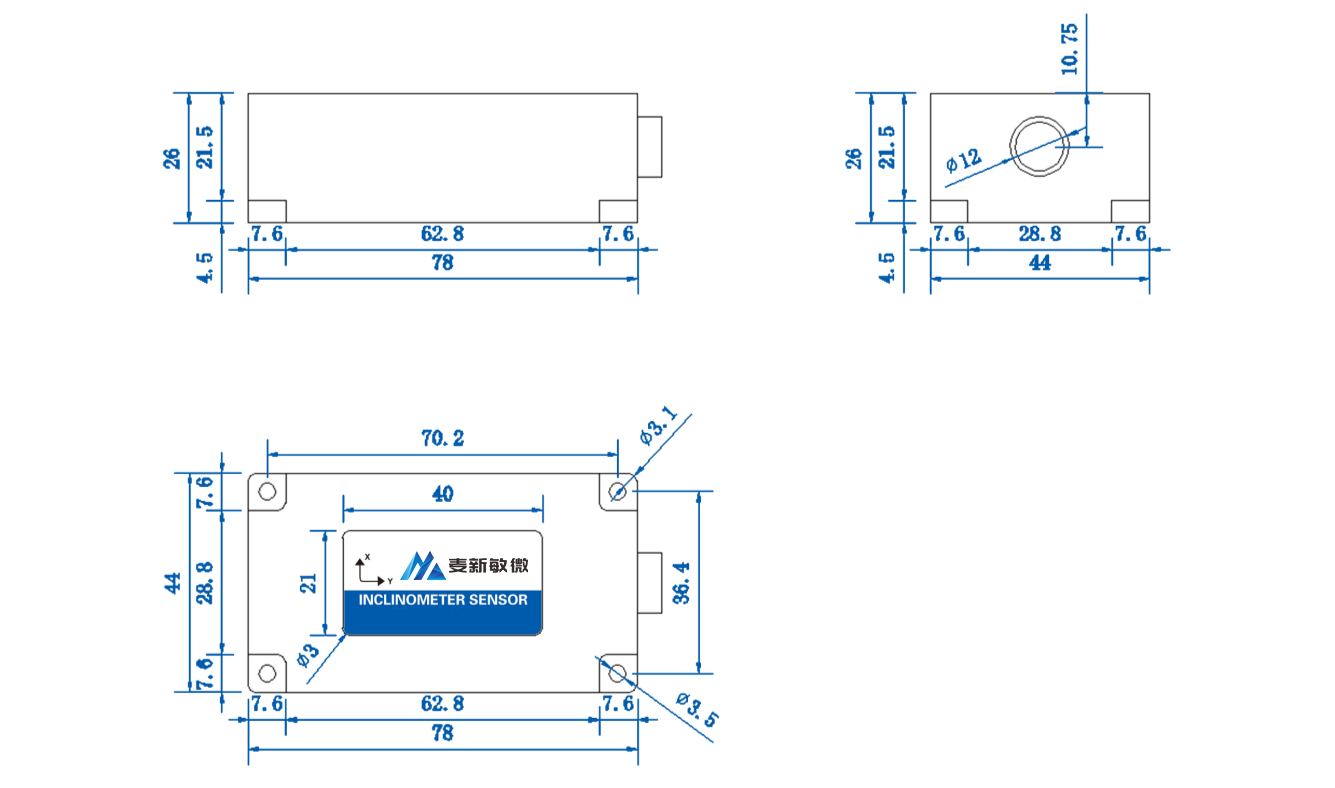

The T7000-E series is a high-performance voltage output single-axis tilt sensor with measurement range ±180 °(0~±360° optional) and maximum accuracy of 0.008 °. It can output standard 0-5V and 0-10V analog voltages, with RS232 and RS485 options available simultaneously. Good anti-interference characteristics, suitable for long-distance signal transmission. The product is easy to install and use, with multiple output options, resistant to external electromagnetic interference, and strong ability to withstand vibration and impact, suitable for measuring angles in industrial control environments such as surveying and mapping.

T7000-F is a standard industrial high-precision voltage output dual-axis inclination sensor launched by Micro-Magic Inc. The standard voltage is 0~5V, 0.5~4.5V, and 0~10V are optional. At the same time, RS232 output can be used, RS485 can be customized, and it can be used for long-distance transmission of 2000 meters. Users only need to collect the voltage value of the sensor to calculate the object tilt angle. The built-in (MEMS) solid pendulum converts the change of the static gravity field into a change of inclination angle by measuring the change of the static gravity field.   The product adopts the latest MEMS sensing production technology, which makes accurate compensation and correction for temperature error and linearity error, high accuracy, small size, high packaging technology, good vibration resistance, built-in anti-radio frequency, and anti-electromagnetic interference circuit, especially suitable for the application of underground non-excavation machinery and other harsh industrial environments.

The T7000-H is a fully temperature compensated ultra-high precision dual axis tilt sensor with a resolution of 0.0005°, an accuracy of 0.001°, and a temperature drift of 0.0005°/℃. The output interfaces RS232, RS485, RS422, Modbus, and TTL are optional. The product is equipped with professional computer software, data measurement and recording. The feature of non-contact installation has excellent system integration, convenient and convenient installation. It has the ability to resist external electromagnetic interference and withstand strong impact and vibration, and has an absolute advantage in domestic peer products.

The T7000-N is a domestically developed dual axis tilt angle measuring instrument (referred to as the "inclinometer") and temperature measuring module for high-precision tilt angle measurement of components by Micro-Magic Inc. Range ± 60°, accuracy 0.002°, resolution 0.0006°, output RS232, TTL, RS485, RS422 optional, integrated with industrial standard RTU Modbus and 0x68 hexadecimal protocols; The accompanying computer analysis software can display and record measurement data in real-time for analysis. Domestic components account for over 85%, with internal core components including MCU microcontrollers, high-precision 24 bit A/D modules, temperature sensors, signal processors, power circuits, output circuits, etc. To manufacture domestically produced equipment and overcome barriers to independent research and development technology.
