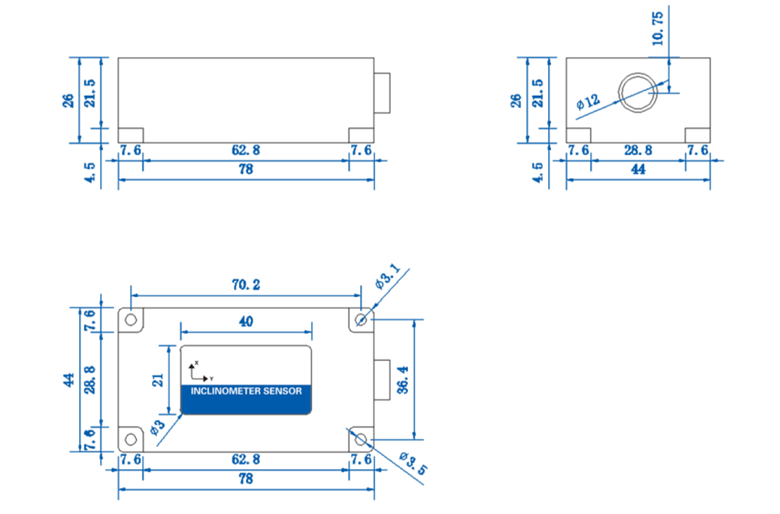

Industrial T7000-C Mems Inclinometer ±90° Range RS232/RS485 Optional Wide Temp -40~+85℃ Vibration Resistance 20000g IP67

The T7-B series is a digital small volume Micro-Magic Inc photovoltaic tracking inclinometer with a maximum measurement angle range of single axis 360 °, accuracy of 0.3 °, and 3.3V TTL output. Due to the built-in MCU control system, the sensor output linearity is corrected twice, compensating for the accuracy decrease caused by insufficient correction in analog models. Adopting non-contact measurement of the original quantity, it can output the current attitude inclination in real time, and is simple to use without the need to retrieve the relative changes of the two surfaces for installation. It is industrial automation control, wind deviation monitoring, inclination measurement, horizontal adjustment, vertical monitoring, and attitude recording; Engineering machinery, surveying and mapping instruments, etc.

The T7-C series is a new generation of digital small-volume MEMS inclination sensors launched by Micro-Magic Inc Hi-Tech Company. It has a built-in dual-channel earth gravity inclination unit that measures dynamic gravity acceleration and converts it into inclination angle changes. This allows measurement of the roll and pitch angles of the sensor output relative to the horizontal plane. It has output mode as RS232, RS485, RS422, Modbus, TTL level interface standard optional. Due to the built-in MCU control system, the linearity of the sensor output is corrected twice, which makes up for the decrease in accuracy caused by insufficient correction of the analog type.

The T70-A is a dual-axis digital inclination sensor developed by Micro-Magic Inc Hi-Tech Company for its component MEMS inclination measurement module. It adopts RTU Modbus protocol and its internal core components are 100% produced in China, including MCU processor, A/D converter, and power circuit, output circuit, etc. For domestic equipment manufacturing, overcome technical barriers to independent research and development. All products have been calibrated, temperature compensated, and long-term aging and stability tested before leaving the factory. Each process is precise and rigorous to ensure reliability under different working conditions and long-term use cycles.

The T70-B series is a dual-axis tilt sensor for the fields of industrial site control and explosion-proof and hazardous inclination angle measurement. The internal MCU, MEMS inclination angle module, power circuit, and output circuit have been optimized for protection design. Before leaving the factory, each product has undergone a full temperature range calibration and compensation, and a two-week long-term stability test to ensure that it maintains the best performance indicators under different working conditions and long-term test cycles. The product integrates two digital output protocols and multiple output interfaces.

T70-C is a small size single-axis current output inclination sensor developed by Micro-Magic Inc Hi-Tech Company. The output current is 4~20mA, 0~20mA, 0~24mA optional. Due to the built-in inclination unit of the latest micro-electromechanical production technology, it is small in size and low in power consumption. The working temperature reaches the industrial level -40~+85℃. The long-distance transmission can reach more than 2500 meters. It has strong anti-electromagnetic interference ability and can be adapted to the environment. Long-term work in harsh industrial environments.

T70-D is a high-performance relay output single-axis dual-channel digital tilt switch launched by Micro-Magic Inc Hi-Tech Company. The product has a measurement range of 0~±180° and two built-in relay output circuits. When the inclination angle value is greater than the preset alarm threshold, a non-inductive contact relay signal (driving current 1A) will be output, and the solenoid valve will be opened to perform corresponding hydraulic leg leveling. The alarm threshold is calibrated at the factory, and users can also set the alarm angle threshold by themselves.

T70-E is a high-performance relay output dual-axis single-channel tilt switch launched by Micro-Magic Inc Hi-Tech Company.. The product has a measurement range of 0~±90° and two built-in relay output circuits. When the inclination angle value is greater than the preset alarm threshold, a non-inductive contact relay signal (driving current 1A) will be output, and the solenoid valve will be opened to perform corresponding hydraulic leg leveling. The alarm threshold is calibrated at the factory, and users can also set the alarm angle threshold by themselves.

T70-FA is a high-precision 0.01°, small size, low power consumption, high consistency and stability, dual axis 4-phase and 4-way tilt switch launched by Micro-Magic Inc Hi-Tech Company. The working temperature reaches industrial grade -40 ℃ -85 ℃, and the alarm threshold of the switch action point is calibrated at the factory. It is equipped with computer debugging software, and the switch action point and trigger delay time can be set by the user. The product is designed with precision, compensating for temperature and linearity again, integrating comprehensive protection functions such as short circuit, instantaneous high voltage, polarity, surge, etc.

T70-FB is a high-precision 0.01°, small size, low power consumption, high consistency and stability, dual axis 4-phase and 2-way tilt switch launched by Micro-Magic Inc Hi-Tech Company. The working temperature reaches industrial grade -40 ℃ -85 ℃, and the alarm threshold of the switch action point is calibrated at the factory. It is equipped with computer debugging software, and the switch action point and trigger delay time can be set by the user. The product is designed with precision, compensating for temperature and linearity again, integrating comprehensive protection functions such as short circuit, instantaneous high voltage, polarity, surge, etc.

T70-FC is a high-precision 0.01 °, small size, low power consumption, high consistency and stability, high-precision 1-channel switch output type, horizontal 360 ° vertical attitude measurement tilt angle switch in any direction, launched by Micro-Magic Inc Hi-Tech Company. The working temperature reaches industrial grade -40 ℃ -85 ℃, and the alarm threshold of the switch action point is calibrated at the factory. It is equipped with computer debugging software, and the switch action point and trigger delay time can be set by the user. The product is designed with precision, compensating for temperature and linearity again, integrating comprehensive protection functions such as short circuit, instantaneous high voltage, polarity, surge, etc.

The T70-H is a dual axis digital tilt sensor by Micro-Magic Inc Hi-Tech Company, integrating industrial standard RTU Modbus and 0x68 hexadecimal protocols; Output RS232, RS485, RS422, TTL optional. Mainly targeting application markets with high limitations in volume, cost, and localization rate. Due to the built-in MEMS micro electromechanical production process tilt unit, it has a small volume, low power consumption, high consistency and stability, strong resistance to external electromagnetic interference, and strong ability to withstand impact and vibration. To manufacture domestically produced equipment and overcome technological barriers in independent research and development.

T70-J is a domestically developed dual axis 4-way 2-way tilt angle switch for component tilt angle measurement module by Micro-Magic Inc. It adopts RTU Modbus protocol and has internal core components, including MCU processor, MEMS tilt unit, power circuit, output circuit, and other domestically produced components. To manufacture domestically produced equipment and overcome barriers to independent research and development technology.

T70-J is a domestically developed dual axis 4-way 4-way tilt angle switch for component tilt angle measurement module by Micro-Magic Inc. It adopts RTU Modbus protocol and has internal core components, including MCU processor, MEMS tilt unit, power circuit, output circuit, and other domestically produced components. To manufacture domestically produced equipment and overcome barriers to independent research and development technology.

T700-A is a digital output dual-axis inclination sensor with a built-in high-precision 16bit A/D converter and can measure the tilt and pitch angle of the sensor output relative to the horizontal plane through an n-order filter algorithm. Output interface RS232, RS485, RS422, TTL, Modbus, PWM, CANbus are optional. The product can correct the sensor temperature drift according to the monitoring temperature change of the built-in temperature sensor, ensuring the repeatability of the product in low temperature and high temperature environments. Output corresponding frequency 100HZ.

The T700-E is an analog voltage dual-axis tilt sensor. Users only need to collect the voltage value of the sensor to calculate the current tilt angle of the object. The built-in (MEMS) solid pendulum measures changes in the static gravity field, converts them into tilt angle changes, and outputs them through voltage (0~10V, 0.5-4.5V, 0~5V optional). The product adopts a non-contact measurement principle and can output the current attitude and inclination angle in real time. It is small in size and has good ability to withstand shock and vibration. It is especially suitable for application machinery and other harsh industrial environments.

T700-F is a standard industrial dual axis current output tilt sensor. The standard current is 4-20mA, 0-20mA, and 0-24MA, which can be selected for long-distance transmission of 2000 meters. The product adopts the latest MEMS sensing production process, which accurately compensates and corrects temperature and linearity errors. It has high accuracy, small size, high packaging technology, good vibration resistance, built-in anti RF, and adopts anti electromagnetic interference circuits, especially suitable for underground non excavation machinery and other harsh industrial environments.

The T700-I series is a digital output tri-axis tilt sensor, equipped with a high-precision 16bit A/D converter and outputs the dual axis tilt value through an n-order filtering algorithm. The output interfaces RS232, RS485, RS422, TTL, Modbus, and CAN bus are optional. The product can correct sensor temperature drift based on the monitoring temperature changes of the built-in temperature sensor, ensuring the repeatability of the product in low and high temperature environments. Output the corresponding frequency of 100Hz.

T7000-A is a standard industrial high-precision current output dual-axis inclination sensor. RS232 output can be used for long-distance transmission of 2000 meters. The built-in (MEMS) solid pendulum converts the change of the static gravity field into a change of inclination angle by measuring the change of the static gravity field. The product makes accurate compensation and correction for temperature error and linearity error, high accuracy, good anti-vibration, anti-electromagnetic interference circuit, especially suitable for the application of underground non-excavation machinery and other harsh industrial environments.

The T7000-B series is a high-performance current output single axis tilt sensor. The measurement range is 0- ± 180 ° (0-360 °), with a maximum accuracy of 0.008 °. It can output standard 4-20mA, 0-20mA, and 0-24mA analog currents, with RS232 and RS485 options available simultaneously. Good anti-interference characteristics, suitable for long-distance signal transmission. The product is easy to install and use, with multiple output options, resistant to external electromagnetic interference, and strong ability to withstand vibration and impact, suitable for measuring angles in industrial control environments such as surveying and mapping.

The T7000-C series is a high-performance current output dual-axis tilt sensor. The measurement range is dual axis ± 90 ° with a maximum accuracy of 0.008 °. It can output standard 4-20mA, 0-20mA, and 0-24mA analog currents, with RS232 and RS485 options available simultaneously. Good anti-interference characteristics, suitable for long-distance signal transmission. The product is easy to install and use, with multiple output options, resistant to external electromagnetic interference, and strong ability to withstand vibration and impact, suitable for measuring angles in industrial control environments such as surveying and mapping.

The T7000-D series is a high-performance voltage output dual-axis tilt sensor with measurement range ± 90 ° and maximum accuracy of 0.008 °. It can output standard 0-5V and 0-10V analog voltages, with RS232 and RS485 options available simultaneously. Good anti-interference characteristics, suitable for long-distance signal transmission. The product is easy to install and use, with multiple output options, resistant to external electromagnetic interference, and strong ability to withstand vibration and impact, suitable for measuring angles in industrial control environments such as surveying and mapping.

The T7000-E series is a high-performance voltage output single-axis tilt sensor with measurement range ±180 °(0~±360° optional) and maximum accuracy of 0.008 °. It can output standard 0-5V and 0-10V analog voltages, with RS232 and RS485 options available simultaneously. Good anti-interference characteristics, suitable for long-distance signal transmission. The product is easy to install and use, with multiple output options, resistant to external electromagnetic interference, and strong ability to withstand vibration and impact, suitable for measuring angles in industrial control environments such as surveying and mapping.

T7000-F is a standard industrial high-precision voltage output dual-axis inclination sensor launched by Micro-Magic Inc. The standard voltage is 0~5V, 0.5~4.5V, and 0~10V are optional. At the same time, RS232 output can be used, RS485 can be customized, and it can be used for long-distance transmission of 2000 meters. Users only need to collect the voltage value of the sensor to calculate the object tilt angle. The built-in (MEMS) solid pendulum converts the change of the static gravity field into a change of inclination angle by measuring the change of the static gravity field.   The product adopts the latest MEMS sensing production technology, which makes accurate compensation and correction for temperature error and linearity error, high accuracy, small size, high packaging technology, good vibration resistance, built-in anti-radio frequency, and anti-electromagnetic interference circuit, especially suitable for the application of underground non-excavation machinery and other harsh industrial environments.

The T7000-H is a fully temperature compensated ultra-high precision dual axis tilt sensor with a resolution of 0.0005°, an accuracy of 0.001°, and a temperature drift of 0.0005°/℃. The output interfaces RS232, RS485, RS422, Modbus, and TTL are optional. The product is equipped with professional computer software, data measurement and recording. The feature of non-contact installation has excellent system integration, convenient and convenient installation. It has the ability to resist external electromagnetic interference and withstand strong impact and vibration, and has an absolute advantage in domestic peer products.
