T7000-A

The ACM-100 tri-axis accelerometer is a widely used acceleration sensor series product produced by Micro-Magic Inc Hi-Tech Company with Swiss patented technology, which can be used in various fields such as vibration testing and impact testing. The product adopts digital interface output, with RS232, RS485, TTL, Modbus protocol, and RS422 optional. Different address codes can be set, and multiple sensors can be connected in series for long-distance measurement and data analysis at multiple points. ACM-100 is a single crystal silicon capacitive sensor, consisting of a silicon chip that has undergone micro mechanical processing, a low-power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor.

The ACM-200 tri-axis accelerometer is a widely used acceleration sensor series product produced by Micro-Magic Inc Hi-Tech Company with Swiss patented technology, which can be used in various fields such as vibration testing and impact testing. The product adopts output interface with 4~20mA and 0~20mA. Different address codes can be set, and multiple sensors can be connected in series for long-distance measurement and data analysis at multiple points. ACM-200 is a single crystal silicon capacitive sensor, consisting of a silicon chip that has undergone micro mechanical processing, a low-power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor.

The ACM-300 tri-axis accelerometer is a widely used acceleration sensor series product produced by Micro-Magic Inc Hi-Tech Company with Swiss patented technology, which can be used in various fields such as vibration testing and impact testing. The product adopts output interface with 0~5V and 0~10V. Different address codes can be set, and multiple sensors can be connected in series for long-distance measurement and data analysis at multiple points. ACM-300 is a single crystal silicon capacitive sensor, consisting of a silicon chip that has undergone micro mechanical processing, a low-power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor.

The ACM-1900 silicon-based MEMS accelerometer adopts a small volume ceramic package, which has the characteristics of high precision, wide range, resistance to large impact, wide temperature range, and fully digital output. This accelerometer integrates temperature compensation function internally and uses SPI Bus to read and write data.

AC-3 quartz flexible accelerometer series is a high-precision military inertial navigation class accelerometer with excellent long-term stability, repeatability, start-up performance, environmental adaptability and high reliability. It can be used for both static and dynamic testing, and it is also a standard vibration sensor and inclination sensor. The output current of the product has a linear relationship with the force or acceleration received. Users can select the appropriate sampling resistance through calculation to achieve high precision output. And according to user needs built-in temperature sensor, used to offset value and scale factor compensation, reduce the impact of environmental temperature.

AC-4 quartz flexible accelerometer series is a high temperature and anti-vibration accelerometer, the product has excellent repeatability, starting performance, high temperature        and high reliability characteristics, it can be used for static testing and dynamic testing, it is also a standard vibration sensor. Products adopt unique high temperature design, packaging process and special circuit, product output current is proportional to the measured acceleration, the user can calculate the appropriate sampling resistance, achieve high precision output, and according to the user demand built-in temperature sensor, used for the partial value and scale factor compensation, reduce the influence of environmental temperature. QA 650, T185, T160, JAE series products can be replaced in situ, but we adopt double torque structure, it is different from other company products.

The U3000 sensor is a high-precision strapdown Inertial measurement unit that can measure the angular velocity and acceleration parameters of a moving carrier. The original data is estimated by 6-state Kalman filter with appropriate gain, which is suitable for inertial measurement in motion or vibration state. This product adopts highly reliable MEMS accelerometers and gyroscopes, and ensures measurement accuracy through algorithms. At the same time, the sealing design and strict production process ensure that the product can still accurately measure the angular velocity and acceleration of the carrier and other motion parameters in harsh environments. Through nonlinear compensation, orthogonal compensation, temperature compensation, drift compensation and other compensation, the error source of the inertial chip itself can be greatly eliminated, and the product accuracy level can be improved. This product has a digital interface and can be easily integrated into the user's system. This product is all self-developed and has the characteristics of low power consumption, high reliability, high stability, shockproof, waterproof, dustproof, and electromagnetic interference resistance.

The U300-B sensor, launched by Micro-Magic Inc Hi-Tech Company, is a sturdy and durable industrial-grade small-size inertial measurement unit (IMU) that can measure the acceleration, angular velocity and attitude angle (pitch angle, roll angle) parameters of the moving carrier. The U300-B is great replacement of ADIS16460, which uses high-reliability MEMS accelerometers and gyroscopes, and applies a 6-state extended Kalman filter algorithm with appropriate gain to ensure measurement accuracy, and greatly eliminates the problem through various compensations such as nonlinear compensation, orthogonal compensation, temperature compensation and drift compensation. It eliminates error sources and is especially suitable for inertial measurement under motion or vibration conditions to meet strict environmental requirements.

U3500 series is an IMU/VRU/AHRS sensor composed of high-performance MEMS-IMU, magnetometer, and enhanced single axis gyroscope. It is equipped with self-developed adaptive extended Kalman filter, IMU noise dynamic analysis algorithm, and carrier motion state analysis algorithm, which can meet the accuracy of attitude angle under high dynamic conditions and reduce heading angle drift.

U5000-IMU sensor is a highly reliable and cost-effective six axis MEMS inertial heading and attitude system, which can be widely used in navigation, control, and measurement fields represented by vehicles, ships, and drones. High performance MEMS gyroscopes and MEMS accelerometers are integrated into the independent structure, and the gyroscopes and accelerometers selected in the system represent the leading level of MEMS process inertial devices. The product can replace STIM-300 IMU, and its core indicators such as full temperature drift, scale factor error, and vibration performance are 3-5 times higher than STIM-300 sensor.

U7000 series high-precision MEMS-IMU is a highly reliable and cost-effective six axis MEMS inertial sensor combination, which can be widely used in navigation, control, and measurement fields represented by inertial navigation and attitude stability. This series of MEMS inertial measurement units can be configured with different software and hardware according to user needs. For some inertial navigation applications, gyroscopes can be replaced with high-precision or high dynamic MEMS gyroscopes to meet the needs of different users to the greatest extent possible

The A5000 sensor, launched by Micro-Magic Inc HIGH-TECH Company, is a high-precision strapdown Attitude Heading Reference System (AHRS), with built-in high-precision accelerometers, gyroscopes, and magnetometers. Through multi-sensor fusion algorithms, it provides reliable heading angle, roll angle, pitch angle, angular velocity, acceleration, and other information for the motion carrier. The attitude data deviation is estimated through a 6-state Kalman filter with appropriate gain, which is suitable for navigation, positioning, and dynamic attitude measurement of unmanned vehicles.

A5500 series is an IMU/VRU/AHRS sensor composed of high-performance MEMS-IMU, magnetometer, and enhanced single axis gyroscope. It is equipped with self-developed adaptive extended Kalman filter, IMU noise dynamic analysis algorithm, and carrier motion state analysis algorithm, which can meet the accuracy of attitude angle under high dynamic conditions and reduce heading angle drift. Every sensor undergoes fine compensation including temperature, zero bias, scaling factor, and cross axis before leaving the factory.

The T7-A series is a new generation of digital small-volume Micro-Magic Inc inclination sensors launched by MXMW Hi-Tech Company. It has a built-in dual-channel earth gravity inclination unit that measures dynamic gravity acceleration and converts it into inclination angle changes. This allows measurement of the roll and pitch angles of the sensor output relative to the horizontal plane. It has output mode as RS232, RS485, RS422, Modbus, TTL level interface standard optional. Due to the built-in MCU control system, the linearity of the sensor output is corrected twice, which makes up for the decrease in accuracy caused by insufficient correction of the analog type.

The T70-G series is a new generation of digital small volume MEMS tilt sensors launched by Micro-Magic Inc Hi-Tech Company. It is equipped with a dual channel Earth gravity tilt unit, which measures dynamic gravity acceleration and converts it into tilt angle changes. Thus, it is possible to measure the tilt and pitch angles of the sensor output relative to the horizontal plane. The output methods RS232, RS485, RS422, Modbus, and TTL level interface standards are optional. Due to the built-in MCU control system, the sensor output linearity is corrected twice, compensating for the accuracy decrease caused by insufficient correction in analog models.

The T700-B is a digital output (X, Y, Z) three-axis inclination sensor with a built-in high-precision 16bit A/D converter, and through an n-order filtering algorithm, the final output X, Y, Z inclination values. Output interface has RS232, RS485, RS422, TTL, Modbus, and Canopen optional. The product can correct the sensor temperature drift based on the temperature changes monitored by the built-in temperature sensor to ensure the repeatability of the product in low and high temperature environments. Output corresponding frequency 100HZ. The product is good for dangerous building monitoring.

The T700-C is a digital output (X, Y, Z) three-axis inclination sensor with a built-in high-precision 16bit A/D converter, and through an n-order filtering algorithm, the final output X, Y, Z inclination values. Output interface has RS232, RS485, RS422, TTL, Modbus, and Canopen optional. The product can correct the sensor temperature drift based on the temperature changes monitored by the built-in temperature sensor to ensure the repeatability of the product in low and high temperature environments. Output corresponding frequency 100HZ.

T700-D is a digital output (X, Y, Z) three-axis inclination sensor launched by Micro-Magic Inc Hi-Tech Company for the field of industrial field control. It has a built-in high-precision 16bit A/D converter, and through an n-order filtering algorithm, it finally outputs X, Y, Z-axis inclination angle value. The output interfaces RS232, RS485, RS422, TTL, Modbus and CAN bus are optional. The product can correct the sensor temperature drift based on the temperature changes monitored by the built-in temperature sensor to ensure the repeatability of the product in low and high temperature environments. Output corresponding frequency 100HZ.

The T700-G series is a digital output dual axis tilt sensor, equipped with a high-precision 16bit A/D converter and outputs the dual axis tilt value through an n-order filtering algorithm. The output interfaces RS232, RS485, RS422, TTL, Modbus, and CAN bus are optional. The product can correct sensor temperature drift based on the monitoring temperature changes of the built-in temperature sensor, ensuring the repeatability of the product in low and high temperature environments. Output the corresponding frequency of 100Hz.

The T700-H series is a digital output dual axis tilt sensor, equipped with a high-precision 16bit A/D converter and outputs the dual axis tilt value through an n-order filtering algorithm. The output interfaces RS232, RS485, RS422, TTL, Modbus, and CAN bus are optional. The product can correct sensor temperature drift based on the monitoring temperature changes of the built-in temperature sensor, ensuring the repeatability of the product in low and high temperature environments. Output the corresponding frequency of 100Hz.

The T7000-G is a fully temperature compensated ultra-high precision dual axis tilt sensor with a resolution of 0.0005°, an accuracy of 0.001°, and a temperature drift of 0.0005°/℃. The output interfaces RS232, RS485, RS422, Modbus, and TTL are optional. The product is a customized inclinometer for measuring the inclination angle of geotechnical and foundation pits. It integrates a 24-bit ARM high-end system internally, with a resolution of 4 seconds and a response frequency of up to 100Hz. Users only need to connect the T7000-G to the data transmission circuit to form a high-precision inclinometer.

T7000-I-Modbus protocol is an ultra-low power consumption, small size, and full temperature compensation high-precision wireless inclination sensor. Powered by lithium batteries, based on the Internet of Things technology Bluetooth/Zigbee (optional) wireless transmission technology, all internal circuits have been optimized and designed using various measures such as industrial-grade MCU, three-proof PCB board, imported cables, and wide-temperature metal casing. The product has great long-term stability and small zero-point drift, and can automatically enter low-power sleep mode and getting rid of dependence on the use environment.

T7000-J is a high-performance sensor based on Bluetooth and Zigbee (optional) wireless transmission technology. The sensor has a measuring range of ±90°, accuracy of 0.1°, resolution of 0.01° (optional). It is suitable for safety monitoring systems in industrial sites, buildings, and civil engineering. The wireless transmission distance of industrial grade equipment: Bluetooth<50 meters, Zigbee<450 meters. Wireless sensor nodes can form a huge wireless network, supporting thousands of measurement points for tilt monitoring simultaneously. Equipped with professional computer software, it can measure and record real-time data.

T7000-K Modbus protocol is an ultra-low power consumption, small size, and high-performance wireless inclination sensor independently developed by Micro-Magic Inc Sensing. It is aimed at industry applications where users have no power supply conditions or real-time dynamic measurement of object attitude angles. Based on the Internet of Things technology Bluetooth, Zigbee (optional wireless transmission technology), all internal circuits have been optimized and designed, with good long-term stability and small zero-point drift. It can automatically enter low-power sleep mode to get rid of dependence on the use environment. Industrial-grade equipment wireless transmission distance Bluetooth <50 meters Zigbee< 160 0 meters.

The T7-B series is a digital small volume Micro-Magic Inc photovoltaic tracking inclinometer with a maximum measurement angle range of single axis 360 °, accuracy of 0.3 °, and 3.3V TTL output. Due to the built-in MCU control system, the sensor output linearity is corrected twice, compensating for the accuracy decrease caused by insufficient correction in analog models. Adopting non-contact measurement of the original quantity, it can output the current attitude inclination in real time, and is simple to use without the need to retrieve the relative changes of the two surfaces for installation. It is industrial automation control, wind deviation monitoring, inclination measurement, horizontal adjustment, vertical monitoring, and attitude recording; Engineering machinery, surveying and mapping instruments, etc.

The T7-C series is a new generation of digital small-volume MEMS inclination sensors launched by Micro-Magic Inc Hi-Tech Company. It has a built-in dual-channel earth gravity inclination unit that measures dynamic gravity acceleration and converts it into inclination angle changes. This allows measurement of the roll and pitch angles of the sensor output relative to the horizontal plane. It has output mode as RS232, RS485, RS422, Modbus, TTL level interface standard optional. Due to the built-in MCU control system, the linearity of the sensor output is corrected twice, which makes up for the decrease in accuracy caused by insufficient correction of the analog type.

The T70-A is a dual-axis digital inclination sensor developed by Micro-Magic Inc Hi-Tech Company for its component MEMS inclination measurement module. It adopts RTU Modbus protocol and its internal core components are 100% produced in China, including MCU processor, A/D converter, and power circuit, output circuit, etc. For domestic equipment manufacturing, overcome technical barriers to independent research and development. All products have been calibrated, temperature compensated, and long-term aging and stability tested before leaving the factory. Each process is precise and rigorous to ensure reliability under different working conditions and long-term use cycles.

The T70-B series is a dual-axis tilt sensor for the fields of industrial site control and explosion-proof and hazardous inclination angle measurement. The internal MCU, MEMS inclination angle module, power circuit, and output circuit have been optimized for protection design. Before leaving the factory, each product has undergone a full temperature range calibration and compensation, and a two-week long-term stability test to ensure that it maintains the best performance indicators under different working conditions and long-term test cycles. The product integrates two digital output protocols and multiple output interfaces.

T70-C is a small size single-axis current output inclination sensor developed by Micro-Magic Inc Hi-Tech Company. The output current is 4~20mA, 0~20mA, 0~24mA optional. Due to the built-in inclination unit of the latest micro-electromechanical production technology, it is small in size and low in power consumption. The working temperature reaches the industrial level -40~+85℃. The long-distance transmission can reach more than 2500 meters. It has strong anti-electromagnetic interference ability and can be adapted to the environment. Long-term work in harsh industrial environments.

T70-D is a high-performance relay output single-axis dual-channel digital tilt switch launched by Micro-Magic Inc Hi-Tech Company. The product has a measurement range of 0~±180° and two built-in relay output circuits. When the inclination angle value is greater than the preset alarm threshold, a non-inductive contact relay signal (driving current 1A) will be output, and the solenoid valve will be opened to perform corresponding hydraulic leg leveling. The alarm threshold is calibrated at the factory, and users can also set the alarm angle threshold by themselves.

T70-E is a high-performance relay output dual-axis single-channel tilt switch launched by Micro-Magic Inc Hi-Tech Company.. The product has a measurement range of 0~±90° and two built-in relay output circuits. When the inclination angle value is greater than the preset alarm threshold, a non-inductive contact relay signal (driving current 1A) will be output, and the solenoid valve will be opened to perform corresponding hydraulic leg leveling. The alarm threshold is calibrated at the factory, and users can also set the alarm angle threshold by themselves.

T70-FA is a high-precision 0.01°, small size, low power consumption, high consistency and stability, dual axis 4-phase and 4-way tilt switch launched by Micro-Magic Inc Hi-Tech Company. The working temperature reaches industrial grade -40 ℃ -85 ℃, and the alarm threshold of the switch action point is calibrated at the factory. It is equipped with computer debugging software, and the switch action point and trigger delay time can be set by the user. The product is designed with precision, compensating for temperature and linearity again, integrating comprehensive protection functions such as short circuit, instantaneous high voltage, polarity, surge, etc.

T70-FB is a high-precision 0.01°, small size, low power consumption, high consistency and stability, dual axis 4-phase and 2-way tilt switch launched by Micro-Magic Inc Hi-Tech Company. The working temperature reaches industrial grade -40 ℃ -85 ℃, and the alarm threshold of the switch action point is calibrated at the factory. It is equipped with computer debugging software, and the switch action point and trigger delay time can be set by the user. The product is designed with precision, compensating for temperature and linearity again, integrating comprehensive protection functions such as short circuit, instantaneous high voltage, polarity, surge, etc.

T70-FC is a high-precision 0.01 °, small size, low power consumption, high consistency and stability, high-precision 1-channel switch output type, horizontal 360 ° vertical attitude measurement tilt angle switch in any direction, launched by Micro-Magic Inc Hi-Tech Company. The working temperature reaches industrial grade -40 ℃ -85 ℃, and the alarm threshold of the switch action point is calibrated at the factory. It is equipped with computer debugging software, and the switch action point and trigger delay time can be set by the user. The product is designed with precision, compensating for temperature and linearity again, integrating comprehensive protection functions such as short circuit, instantaneous high voltage, polarity, surge, etc.

The T70-H is a dual axis digital tilt sensor by Micro-Magic Inc Hi-Tech Company, integrating industrial standard RTU Modbus and 0x68 hexadecimal protocols; Output RS232, RS485, RS422, TTL optional. Mainly targeting application markets with high limitations in volume, cost, and localization rate. Due to the built-in MEMS micro electromechanical production process tilt unit, it has a small volume, low power consumption, high consistency and stability, strong resistance to external electromagnetic interference, and strong ability to withstand impact and vibration. To manufacture domestically produced equipment and overcome technological barriers in independent research and development.

T70-J is a domestically developed dual axis 4-way 2-way tilt angle switch for component tilt angle measurement module by Micro-Magic Inc. It adopts RTU Modbus protocol and has internal core components, including MCU processor, MEMS tilt unit, power circuit, output circuit, and other domestically produced components. To manufacture domestically produced equipment and overcome barriers to independent research and development technology.

T70-J is a domestically developed dual axis 4-way 4-way tilt angle switch for component tilt angle measurement module by Micro-Magic Inc. It adopts RTU Modbus protocol and has internal core components, including MCU processor, MEMS tilt unit, power circuit, output circuit, and other domestically produced components. To manufacture domestically produced equipment and overcome barriers to independent research and development technology.

T700-A is a digital output dual-axis inclination sensor with a built-in high-precision 16bit A/D converter and can measure the tilt and pitch angle of the sensor output relative to the horizontal plane through an n-order filter algorithm. Output interface RS232, RS485, RS422, TTL, Modbus, PWM, CANbus are optional. The product can correct the sensor temperature drift according to the monitoring temperature change of the built-in temperature sensor, ensuring the repeatability of the product in low temperature and high temperature environments. Output corresponding frequency 100HZ.

The T700-E is an analog voltage dual-axis tilt sensor. Users only need to collect the voltage value of the sensor to calculate the current tilt angle of the object. The built-in (MEMS) solid pendulum measures changes in the static gravity field, converts them into tilt angle changes, and outputs them through voltage (0~10V, 0.5-4.5V, 0~5V optional). The product adopts a non-contact measurement principle and can output the current attitude and inclination angle in real time. It is small in size and has good ability to withstand shock and vibration. It is especially suitable for application machinery and other harsh industrial environments.

T700-F is a standard industrial dual axis current output tilt sensor. The standard current is 4-20mA, 0-20mA, and 0-24MA, which can be selected for long-distance transmission of 2000 meters. The product adopts the latest MEMS sensing production process, which accurately compensates and corrects temperature and linearity errors. It has high accuracy, small size, high packaging technology, good vibration resistance, built-in anti RF, and adopts anti electromagnetic interference circuits, especially suitable for underground non excavation machinery and other harsh industrial environments.

The T700-I series is a digital output tri-axis tilt sensor, equipped with a high-precision 16bit A/D converter and outputs the dual axis tilt value through an n-order filtering algorithm. The output interfaces RS232, RS485, RS422, TTL, Modbus, and CAN bus are optional. The product can correct sensor temperature drift based on the monitoring temperature changes of the built-in temperature sensor, ensuring the repeatability of the product in low and high temperature environments. Output the corresponding frequency of 100Hz.

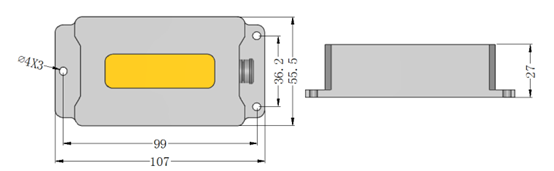

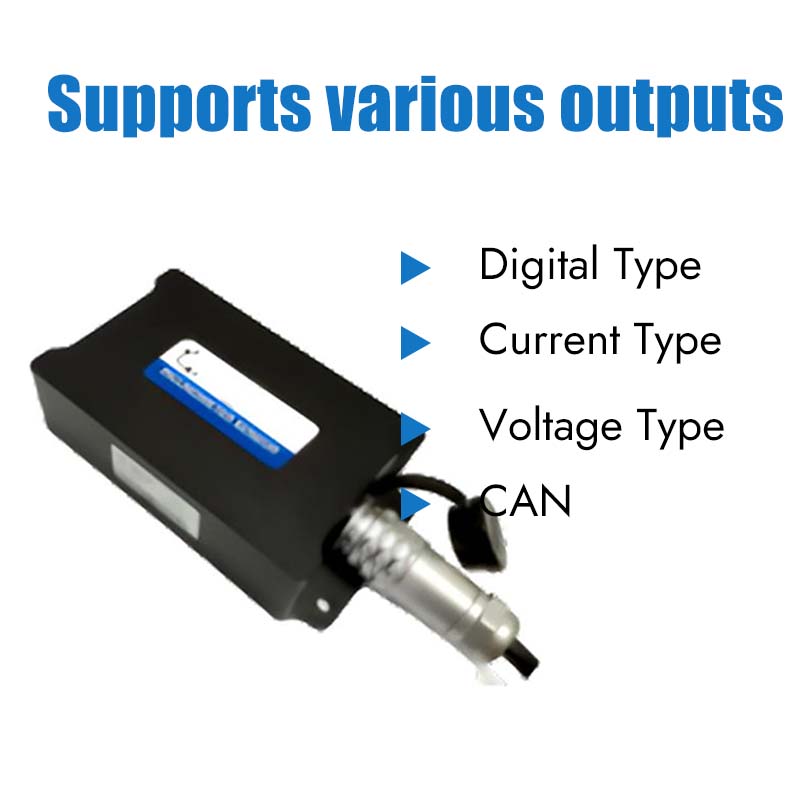

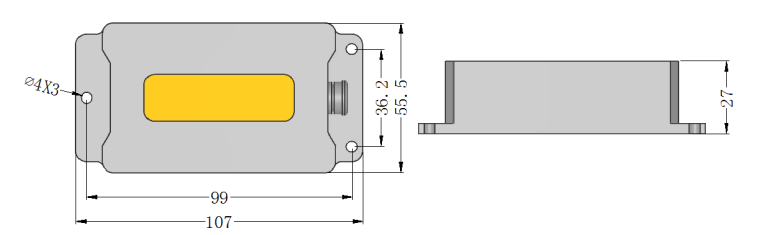

T7000-A is a standard industrial high-precision current output dual-axis inclination sensor. RS232 output can be used for long-distance transmission of 2000 meters. The built-in (MEMS) solid pendulum converts the change of the static gravity field into a change of inclination angle by measuring the change of the static gravity field. The product makes accurate compensation and correction for temperature error and linearity error, high accuracy, good anti-vibration, anti-electromagnetic interference circuit, especially suitable for the application of underground non-excavation machinery and other harsh industrial environments.

The T7000-B series is a high-performance current output single axis tilt sensor. The measurement range is 0- ± 180 ° (0-360 °), with a maximum accuracy of 0.008 °. It can output standard 4-20mA, 0-20mA, and 0-24mA analog currents, with RS232 and RS485 options available simultaneously. Good anti-interference characteristics, suitable for long-distance signal transmission. The product is easy to install and use, with multiple output options, resistant to external electromagnetic interference, and strong ability to withstand vibration and impact, suitable for measuring angles in industrial control environments such as surveying and mapping.

The T7000-C series is a high-performance current output dual-axis tilt sensor. The measurement range is dual axis ± 90 ° with a maximum accuracy of 0.008 °. It can output standard 4-20mA, 0-20mA, and 0-24mA analog currents, with RS232 and RS485 options available simultaneously. Good anti-interference characteristics, suitable for long-distance signal transmission. The product is easy to install and use, with multiple output options, resistant to external electromagnetic interference, and strong ability to withstand vibration and impact, suitable for measuring angles in industrial control environments such as surveying and mapping.

The T7000-D series is a high-performance voltage output dual-axis tilt sensor with measurement range ± 90 ° and maximum accuracy of 0.008 °. It can output standard 0-5V and 0-10V analog voltages, with RS232 and RS485 options available simultaneously. Good anti-interference characteristics, suitable for long-distance signal transmission. The product is easy to install and use, with multiple output options, resistant to external electromagnetic interference, and strong ability to withstand vibration and impact, suitable for measuring angles in industrial control environments such as surveying and mapping.

The T7000-E series is a high-performance voltage output single-axis tilt sensor with measurement range ±180 °(0~±360° optional) and maximum accuracy of 0.008 °. It can output standard 0-5V and 0-10V analog voltages, with RS232 and RS485 options available simultaneously. Good anti-interference characteristics, suitable for long-distance signal transmission. The product is easy to install and use, with multiple output options, resistant to external electromagnetic interference, and strong ability to withstand vibration and impact, suitable for measuring angles in industrial control environments such as surveying and mapping.

T7000-F is a standard industrial high-precision voltage output dual-axis inclination sensor with standard voltage as 0~5V and 0.5~4.5V (0~10V optional). At the same time, RS232 output can be used for long-distance transmission of 2000 meters. The product makes accurate compensation and correction for temperature error and linearity error, high accuracy, good anti-vibration, anti-electromagnetic interference circuit, especially suitable for the application of underground non-excavation machinery and other harsh industrial environments.

The T7000-H is a fully temperature compensated ultra-high precision dual axis tilt sensor with a resolution of 0.0005°, an accuracy of 0.001°, and a temperature drift of 0.0005°/℃. The output interfaces RS232, RS485, RS422, Modbus, and TTL are optional. The product is equipped with professional computer software, data measurement and recording. The feature of non-contact installation has excellent system integration, convenient and convenient installation. It has the ability to resist external electromagnetic interference and withstand strong impact and vibration, and has an absolute advantage in domestic peer products.

G800-B series angle sensor adopts MEMS technology and magnetoelectric induction technology. It uses differential array magnetic sensitive elements and non-contact measurement of the rotating shaft. It senses the parallel magnetic field intensity of the permanent magnet installed at one end of the rotating shaft and performs linearity correction through MCU processing, temperature compensation, output signal standardized digital filtering, zero point setting, programmable intelligent control of multiple different slope settings, to achieve the absolute angular position of the output sensor within the range of 0 ~ 360°. Accuracy 0.2°, output RS232, RS485, CAN, 0-5V, 0.5-4.5V, 0-10V, 4-20mA, 0-20mA optional.

The G801-B series angle sensor adopts MEMS technology and magnetoelectric induction technology. It uses differential array magnetic sensitive elements and non-contact measurement of the rotating shaft. It senses the parallel magnetic field intensity of the permanent magnet installed at one end of the rotating shaft and performs linearity correction through MCU processing, temperature compensation, output signal standardized digital filtering, zero point setting, programmable intelligent control of multiple different slope settings, to achieve the absolute angular position of the output sensor within the range of 0 ~ 360°. Accuracy 0.2°, output RS232, RS485, CAN, 0-5V, 0.5-4.5V, 0-10V, 4-20mA, 0-20mA optional.

G802 series magnetic angle sensor uses MEMS technology to integrate the nanomagnetic beam thin film material and the differential array magnetic sensitive element to non-contact sense changes in the magnetic field. The system integrates (microcomputer) with the current market and various protection circuits. Through DSP processing, it realizes simple intelligent control of linearity correction, temperature compensation, standardization of output signals according to the range, digital simulation, zero point setting, and multi-stage different slope settings. 0 In the 360° range, the user sets the angle to output absolute position measurement.

G803 low-cost series magnetic angle sensor uses MEMS technology to integrate the nanomagnetic focusing film material and the differential array magnetic sensitive element to non-contact sense changes in the rotating magnetic field. The system integrates a microprocessor (micro-computer), a current transmitter and a variety of protection circuits. Through DSP processing, it can perform linearity correction, temperature compensation, standardization of output signals according to the range, digital filtering, zero point setting, and multi-segment different slope settings. Programmed intelligent control enables measurement of absolute position output at user-set angles within the range of 0 to 360°.

G810 series angle sensor embedded microprocessor is combined with a CNC arc-second level calibration device, programmed calibration and conversion, 0.1° high-precision measurement, multiple outputs RS232, TTL, RS485, RS422, CAN, 0-5V, 0.5-4.5V, 0-10V, 4-20mA, 0-20mA optional. The magnetic angle sensor uses MEMS technology to integrate the nanomagnetic focusing thin film material and the differential array magnetic sensitive element to non-contact sense changes in the rotating magnetic field. The system integrates micro-computer, voltage and current transmitters and various protection circuits. Through DSP processing, it performs linearity correction, temperature compensation, standardization of output signals according to the range, digital filtering, zero point setting, and multi-segment different slope settings. programmable intelligent control.

The G820 series high-precision angle sensor is integrated with MEMS technology, low power consumption; By using magneto electric induction technology, precision bearings, differential array magnetic sensing elements, and non-contact measurement of the shaft, the parallel magnetic field strength of a permanent magnet installed at one end of the shaft is sensed and processed by MCU to achieve programmable intelligent control of linearity correction, temperature compensation, N-order digital filtering algorithm, zero point setting, and multiple different slope settings. The absolute angular position of the output sensor is achieved within the range of 0-360 °. Accuracy of 0.05 °, output RS232, TTL, RS485, CAN, 0-5V, 0.5, 4.5V, 0-10V, 4-20mA, 0-20mA optional.

The G830 series is high precision angle sensor, with an accuracy of 0.02°, supporting setting range and adopting integrated MEMS technology, low power consumption, built-in high-precision 16 bit A/D converter, multiple outputs RS232, TTL, RS485, RS422, CAN, 0-5V, 0-10V, 4-20mA, 0-20mA and 0-24mA are optional. By utilizing magneto electric induction technology, precision bearings, differential array magnetic sensitive components, and non-contact measurement of the shaft, the parallel magnetic field strength of a permanent magnet installed at one end of the shaft is sensed and processed by MCU. Linear correction, temperature compensation, self-developed filtering algorithm, and programmable intelligent control with multiple different slope settings are implemented to improve measurement accuracy.

The U300-A sensor, launched by Micro-Magic Inc, is a high-precision strapdown Inertial measurement unit that can measure the angular velocity and acceleration parameters of a moving carrier. The original data is estimated by 6-state Kalman filter with appropriate gain, which is suitable for inertial measurement in motion or vibration state. This product adopts highly reliable MEMS accelerometers and gyroscopes, and ensures measurement accuracy through algorithms. At the same time, the sealing design and strict production process ensure that the product can still accurately measure the angular velocity and acceleration of the carrier and other motion parameters in harsh environments. Through nonlinear compensation, orthogonal compensation, temperature compensation, drift compensation and other compensation, the error source of the inertial chip itself can be greatly eliminated, and the product accuracy level can be improved. This product has a digital interface and can be easily integrated into the user's system. This product is all self-developed and has the characteristics of low power consumption, high reliability, high stability, shockproof, waterproof, dustproof, and electromagnetic interference resistance.

The A500 sensor, launched by Micro-Magic Inc, is a high-precision strapdown Attitude Heading Reference System (AHRS), with built-in high-precision accelerometers, gyroscopes, and magnetometers. Through multi-sensor fusion algorithms, it provides reliable heading angle, roll angle, pitch angle, angular velocity, acceleration, and other information for the motion carrier. The attitude data deviation is estimated through a 6-state Kalman filter with appropriate gain, which is suitable for navigation, positioning, and dynamic attitude measurement of unmanned vehicles.
