China Compact T700-H Medium Precision Digital Tilt Sensor 46×35×8mm IP66 with Temperature Compensation Industrial Reliability Manufacturer

T70-G Digital Output Dual-Axis Tilt Sensor Real-Time Angle Monitoring for Power, Solar, Mining, Marine

The T70-G series is a new generation of digital small volume MEMS tilt sensors launched by Micro-Magic Inc Hi-Tech Company. It is equipped with a dual channel Earth gravity tilt unit, which measures dynamic gravity acceleration and converts it into tilt angle changes. Thus, it is possible to measure the tilt and pitch angles of the sensor output relative to the horizontal plane. The output methods RS232, RS485, RS422, Modbus, and TTL level interface standards are optional. Due to the built-in MCU control system, the sensor output linearity is corrected twice, compensating for the accuracy decrease caused by insufficient correction in analog models.

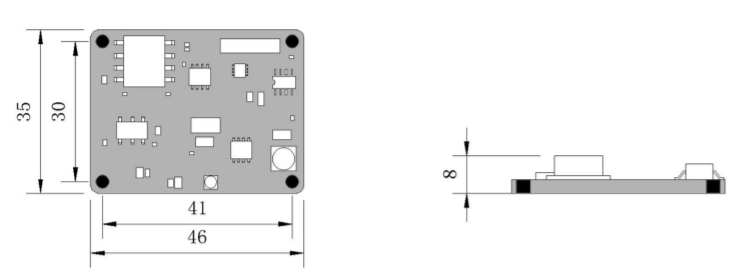

Compact T700-H Medium Precision Digital Tilt Sensor 46×35×8mm IP66 with Temperature Compensation Industrial Reliability

The T700-H series is a digital output dual axis tilt sensor, equipped with a high-precision 16bit A/D converter and outputs the dual axis tilt value through an n-order filtering algorithm. The output interfaces RS232, RS485, RS422, TTL, Modbus, and CAN bus are optional. The product can correct sensor temperature drift based on the monitoring temperature changes of the built-in temperature sensor, ensuring the repeatability of the product in low and high temperature environments. Output the corresponding frequency of 100Hz.

T7000-G Ultra-High Precision Dual Axis Digital Tilt Sensor Built-in 24-Bit Arm System Fast Response 0.01s Frequency 5-100Hz

The T7000-G is a fully temperature compensated ultra-high precision dual axis tilt sensor with a resolution of 0.0005°, an accuracy of 0.001°, and a temperature drift of 0.0005°/℃. The output interfaces RS232, RS485, RS422, Modbus, and TTL are optional. The product is a customized inclinometer for measuring the inclination angle of geotechnical and foundation pits. It integrates a 24-bit ARM high-end system internally, with a resolution of 4 seconds and a response frequency of up to 100Hz. Users only need to connect the T7000-G to the data transmission circuit to form a high-precision inclinometer.

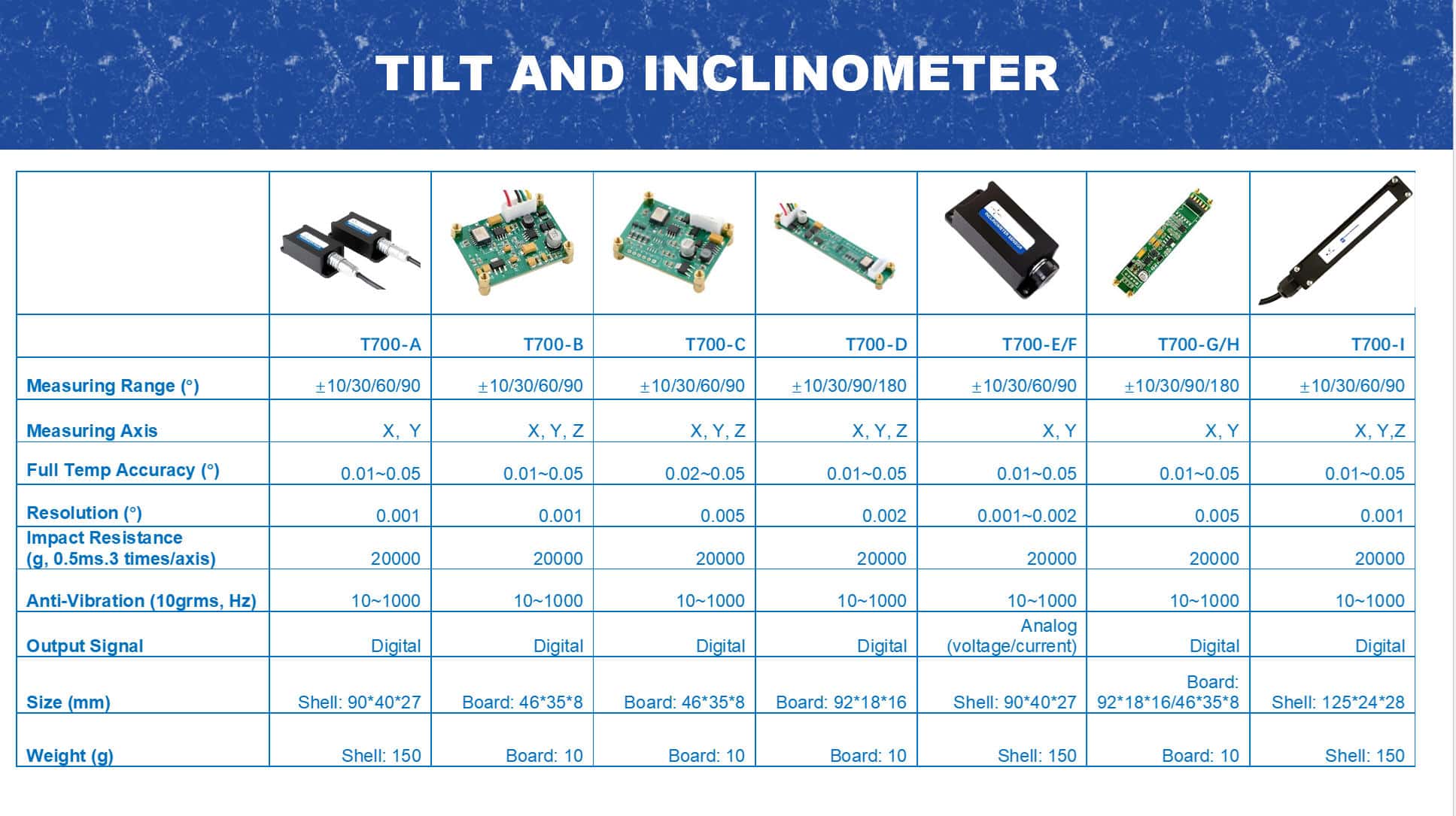

Parameter	Conditions	T700-H-10	T700-H-30	T700-H-60	T700-H-90	Unit
Measuring range		±10	±30	±60	±90	°
Measuring axis		X, Y	X, Y	X, Y	X, Y
Zero temperature drift	-40～85°	±0.001	±0.001	±0.001	±0.001	°/℃
Sensitivity temperature coefficient	-40～85°	≤100	≤100	≤100	≤100	ppm/℃
Frequency response	DC response	100	100	100	100	Hz
Resolution	Bandwidth 5Hz	0.005	0.005	0.005	0.005	°
Accuracy	-40～85℃	0.01	0.02	0.03	0.05	°
Long term stability	-40～85℃	<0.013	<0.022	<0.031	<0.054	°
Power-on start time		0.2				s
Response time		0.01				s
Output rate	5Hz, 15Hz, 35Hz, 50Hz, 100HZ can be set (RS485 does not have this function)
Output signal	RS232/RS485/RS422/TTL/PWM/ CAN/(MODBUS Optional)
Average working hours	≥45000 hours/time
Impact resistance	20000g, 0.5ms, 3 times/axis
Anti-vibration	10grms、10～1000Hz
Insulation resistance	≥100MΩ
Waterproof level	IP66
Cable	Standard 10 cm-length, wear-resistant, oil-proof, wide temperature, shielded cable 4*0.3mm2
Weight	10g (excluding packaging box)

Compact T700-H Medium Precision Digital Tilt Sensor 46×35×8mm IP66 with Temperature Compensation Industrial Reliability
