The M3G-230 MEMS three-axis gyroscope assembly is a highly reliable and cost-effective 3-axis MEMS gyroscope, suitable for navigation, control, and other fields of low- and medium-orbit satellites. The M3G-230 series three-axis gyroscope assembly integrates high-performance MEMS gyroscopes within an independent structure. The gyroscopes used in the system represent the leading level of domestically produced MEMS technology inertial devices. All electronic components within the system are 100% domestically produced. The three-axis MEMS gyroscopes sense the angular motion of the carrier, and the system internally compensates for zero position, scale factor, and non-orthogonal errors across all temperature parameters, maintaining high measurement accuracy over a long period of time.
Part No, :
M3G-230Order(MOQ) :
1Product Series and Parameters
| Type | M3G-230 | |
| Gyro | Measuring range（°/s） | ±50 |
| Full temperature zero bias（°/h） | ≤5 | |
| Zero bias stability（°/h，10s） | ≤0.1 | |
| Zero bias stability（°/h，100s） | ≤0.05 | |
| Zero bias stability（°/h，allan） | ≤0.02 | |
| Zero bias repeatability（°/h） | ≤0.1 | |
| Angle random walk（°/√h） | ≤0.005 | |
| Items related to g（°/h/g） | ≤0.5 | |
| Scale factor nonlinearity（ppm） | ≤150 | |
| Bandwidth（Hz） | ≥12 | |
| Electrical/Mechanical Interface | ||
| Power supply（V） | 5±0.5 | |
| Power (W) | ≤1.5 | |
| Startup time（s） | ≤2 | |
| Communication interface | 1-channel RS-422 | |
| Data update rate（Hz） | Polled output, up to 200Hz | |
| Dimensions （mm×mm×mm） | 44.8×38.6×21.5 | |
| Weight（g） | ≤60 | |
| Operating Environment | ||
| Operating temperature（℃） | -40～85 | |
| Storage temperature（℃） | -55～85 | |
| Vibration | 7.72g（rms） | |
| Shock | 1000g（1ms） | |
Production process

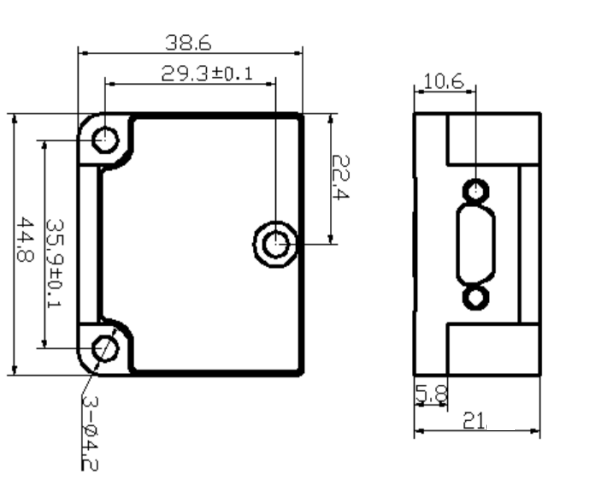

Product dimension
Application Scenarios
The M3G-230 is a high-reliability, cost-effective three-axis MEMS gyroscope assembly that outputs 3D angular velocity, temperature, and fault-diagnosis data via RS-422, designed for high-precision attitude/rotation sensing in low- and medium-orbit satellite navigation and stabilization control.
