I3700

I3700 is an integrated navigation system (GNSS/INS) composed of high-performance MEMS sensors, high-precision GNSS systems and high-performance microprocessors. The built-in self-developed high-reliability integrated navigation algorithm can output the speed, position, attitude and other information of the measured carrier in real time. Users can also externally connect RTCM differential correction data to achieve high-precision RTK positioning. The IP68 waterproof shell-type package can be easily integrated into the user's system. Product model information is as follows:

Part No, :
I3700
Order(MOQ) :
1

Inquire Now

Download

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

1. Product specification

1) Combined Navigation Accuracy Index

Lost lock time	Positioning mode	Position accuracy	Speed accuracy	Pitch/roll accuracy	Heading accuracy
3s	Odometer access	1cm	0.03m/s	0.1°	0.2°
10s		1m	0.1m/s	0.1°	0.2°
60s		6m	0.1m/s	0.2°	0.35°

The sensor was in RTK positioning mode before losing lock.

2) Inertial sensor parameters

IMU	Accelerometer	Gyro	Geomagnetic field	Remark
Measuring range	±6g	500°/s	±8Gauss
Resolution	0.001g	0.001°/s	0.25mg
Bandwidth	150Hz	120Hz	TBD	1
Bias stability	30uG	2.5°/h	TBD
Random walk	0.028m/s√h	0.3°/√h	TBD
Full temperature zero bias change	<0.015°/s/℃	<0.2mg/℃	TBD	1

3) GNSS parameters

Index	describe	Remark
Aisle	1408 channels
Frequency	BDS B1I/B2I/B3I GPS L1 C/A/L2P(Y)/L2C/L5 Galileo E1/E5a/E5b GLONASS L1/L2 QZSS L1/L2/L5
Cold start	<30s
Hot Start	<2s
RTK start time	<5s
Single point positioning accuracy RMS	Level 1.5m Elevation 2.5m
SBAS	Level 0.4m Elevation 0.8m
RTK positioning accuracy RMS	Horizontal 0.8cm+1ppm Height 1.5cm+1ppm
Orientation accuracy	0.2° /1m baseline
update rate	20Hz
Maximum speed	500m/s
maximum height	50000m

4) Mechanical and electrical parameters

Parameter	Condition	I3700
Input voltage	25℃	6-36V DC
Power consumption	25℃	<1.8W
Size	Aviation plug interface	75X60X25.2mm
Weight	Aviation plug interface	180g
Shell material		Aluminum alloy
Operating temperature		-40-85℃
Certification		CE、 ROHS、 IP68

5) Interface resources

Parameter	Describe
COM1	Sensor data input and output interface, connected to the user host
COM2	Differential data input interface output GPGGA
RS-422	Sensor data input and output interface, connected to the user host
CAN1	Sensor data input and output, odometer data input
CAN2	reserve
PPS	Timing signal PPS duty cycle 50%
SYNC	Synchronous input and output pins
Hardware interface	12pin aviation plug
Data Update	Maximum 100Hz(IMU), 100Hz(GNSS/INS)

Users can choose the appropriate hardware interface according to product requirements

6) Data input/output

Parameter	Describe
Data output	NMEA/RTCM/Novtel SPAN binary protocol
Data content	Euler angles, quaternions, velocity, position, acceleration, angular velocity, etc.
Fusion algorithm	EKF
External sensor support	Odometer, GNSS, DTU, etc.

7) Interface electrical parameters

Parameter	Condition	Minimum value	Typical value	Maximum value	Unit
Interface RS-232
Input voltage		-13.6	-	13.6	V
Input voltage threshold V_IL		0.6	1.2	-	V
Input voltage threshold V_IH		-	1.5	2.4	V
Input resistance		3	5	7	kΩ
Output impedance		300	-	-	Ω
Baud rate		9600/115200/230400/256000/460800/921600 Default 115200
Interface CAN2.0
Output voltage	CAN H	2.75	3.5	4.5	V
Output voltage	CAN L	0.5	1.5	2.25	V
Differential output voltage		1.5	-	3	V
Stealth output voltage		2	2.5	3	V
Maximum input voltage	CAN H,CAN L	-42	-	42	V
Baud rate		125K/250K/500K/1000K (default 500K)
Interface RS-422
Differential output voltage		2	-	3.2	V
Common mode output voltage		-	-	3	V
Differential input threshold		-0.2	-	0.2	V
Input lag		-	25	-	mV
Input resistance		12	15	-	kΩ
SYNC IN
Input voltage		-	-	3.6	V
ESD		-15	-	15	kV
SYNC OUT/PPS
Output voltage		-	3.3	-	V
Output current		-	30	-	mA

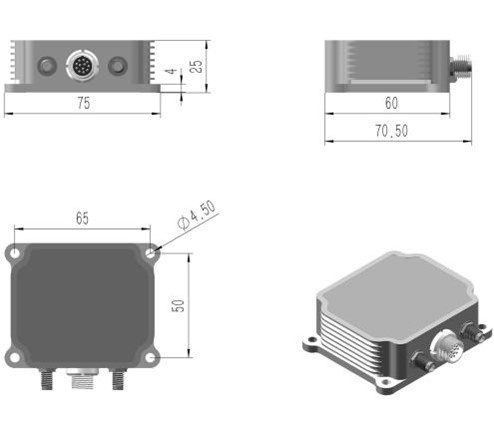

2. Product dimension

Hot Tags : inertial integrated navigation system inertial integrated navigation system supplier inertial integrated navigation system factory inertial integrated navigation system workshop inertial integrated navigation system plant inertial integrated navigation system manufacturer

leave a message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

RELATED PRODUCTS

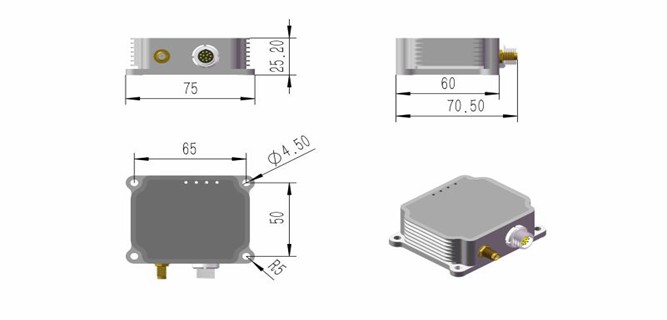

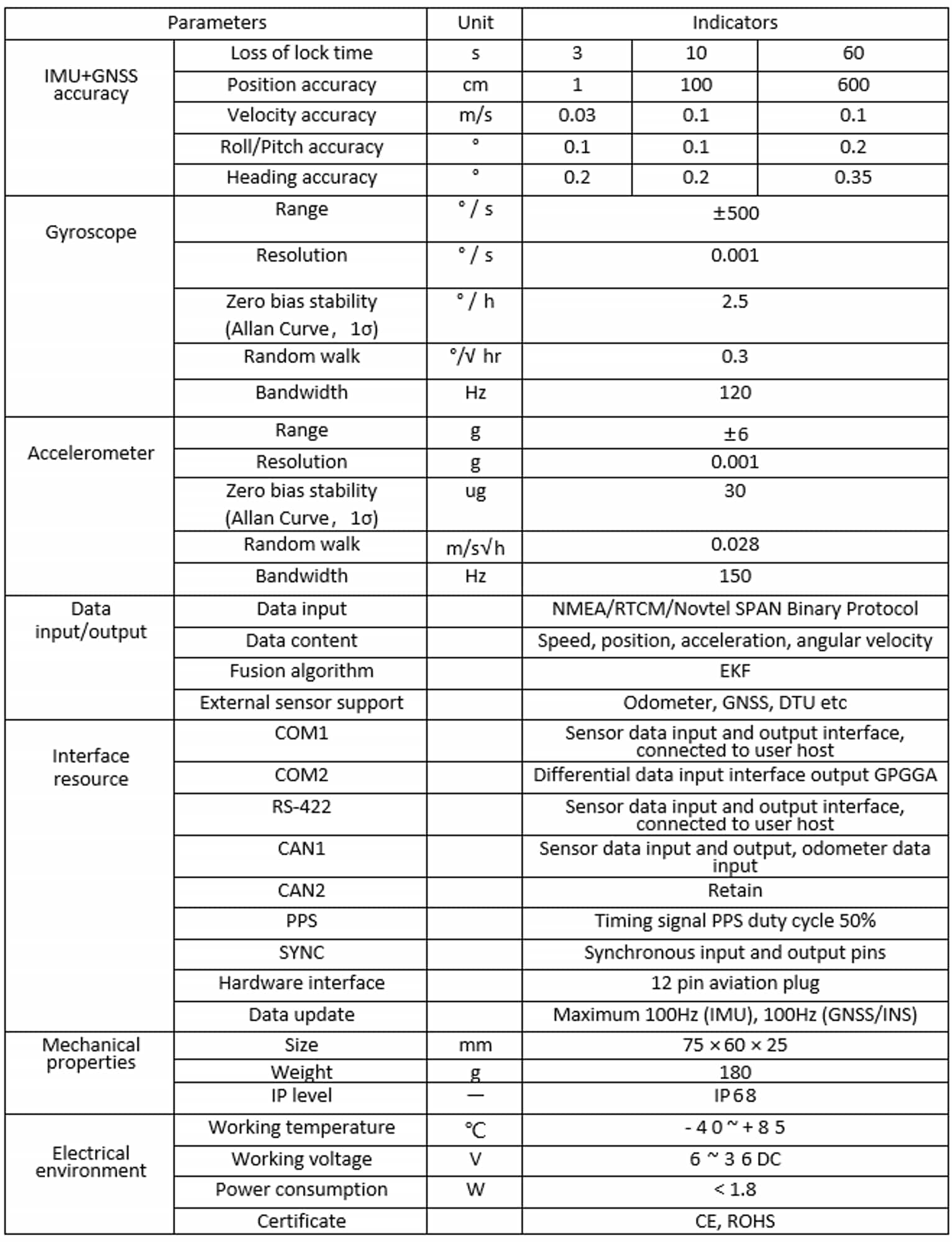

I3500

I3500 is an integrated navigation system (GNSS/INS) composed of high-performance MEMS sensors, high-precision GNSS systems and high-performance microprocessors.  The built-in self-developed high-reliability integrated navigation algorithm can output the speed, position, attitude and other information of the measured carrier in real time. Users can also externally connect RTCM differential correction data to achieve high-precision RTK positioning. The IP68 waterproof shell-type package can be easily integrated into the user's system. Product model information is as follows:

I3700

I3700 is an integrated navigation system (GNSS/INS) composed of high-performance MEMS sensors, high-precision GNSS systems and high-performance microprocessors.  The built-in self-developed high-reliability integrated navigation algorithm can output the speed, position, attitude and other information of the measured carrier in real time. Users can also externally connect RTCM differential correction data to achieve high-precision RTK positioning. The IP68 waterproof shell-type package can be easily integrated into the user's system. Product model information is as follows:

I6700

I6700 SERIES is MEMS integrated navigation system uses high-precision gyroscopes, accelerometers, magnetic sensors, temperature sensors, barometers, satellite receivers, and other sensors, which can replace advanced products with similar performance in Europe and America, as well as fiber optic integrated navigation products with equivalent accuracy. Customized services can be provided according to user needs. At the same time, it can receive satellite differential system reference station information and use high-performance navigation algorithms to fuse multi-sensor information. It can output high-precision navigation information such as pitch, roll, heading, speed, position, etc. of the carrier, suitable for vehicles, aircraft, robots, surface vehicles and other carriers. In the most challenging environment, it can provide very superior attitude and navigation data.

I4500

I4500 integrated navigation system has built-in high-performance MEMS gyroscope and accelerometer, which can receive external GNSS data, realize multi-sensor fusion and integrated navigation algorithm, and have short-term inertial navigation capability when GNSS is invalid. The product has high reliability and strong environmental adaptability. By matching different software, the products can be widely used in the fields of tactical and industrial unmanned aerial vehicles, unmanned vehicles, unmanned ships, aviation guided bombs, intelligent ammunition, rockets, mobile communication, mapping, seeker and stable platform. The product is divided into low-configuration version (I4500-A) and high-configuration version (I4500-B). The two products have different precision and price, which is convenient for users to choose based on specific use conditions.

I6000

The I6000 is a module - level MEMS integrated navigation system independently developed by Lins Technology. It incorporates a MEMS IMU (Inertial Measurement Unit) and a high - precision dual - antenna GNSS. Utilizing a multi - source Kalman filter fusion algorithm, it can provide continuous and reliable high - precision positioning and navigation information in complex environments. The product is widely applied in fields such as s6atellite communication, drones, surveying and mapping, and intelligent driving.      Product Features ⚪ Support full-system multi-frequency points of BDS, GPS, GLONASS, Galileo and QZSS, and support the Beidou-3 satellite system ⚪ IMUs have calibrated in factory ⚪ Adaptive static/dynamic alignment ⚪ Configurable universal vehicle motion information (such as ODM) interface ⚪ Adaptive compensation for system installation errors and ODM scale errors ⚪ The horizontal position accuracy can be within 0.2%×D with GNSS outage① ⚪ Up to 32GB internal storage(optional)   Application  ⚪ Autonomous driving ⚪ Platform stability and control ⚪ Automated machinery ⚪ Robot control

I5000

The I5000 contains a high-precision GNSS module and a factory calibrated IMU, so that it could continuously provide high-precision information on position, velocity, and attitude at high frequency. Even in challenging conditions such as urban canyons, shaded areas, and tunnels, The I5000 will also keep available and self-evaluated reliability by empowered with several algorithms such as multi-source Kalman filter.    Product Features ⚪ Support full-system multi-frequency points of BDS, GPS, GLONASS, Galileo and QZSS, and support the Beidou-3 satellite system ⚪ IMUs have calibrated in factory ⚪ Adaptive static/dynamic alignment ⚪ Configurable universal vehicle motion information (such as ODM) interface ⚪ Adaptive compensation for system installation errors and ODM scale errors ⚪ The horizontal position accuracy can be within 0.2%×D with GNSS outage①     Application  ⚪ Autonomous driving ⚪ Platform stability and control ⚪ Automated machinery ⚪ Robot control

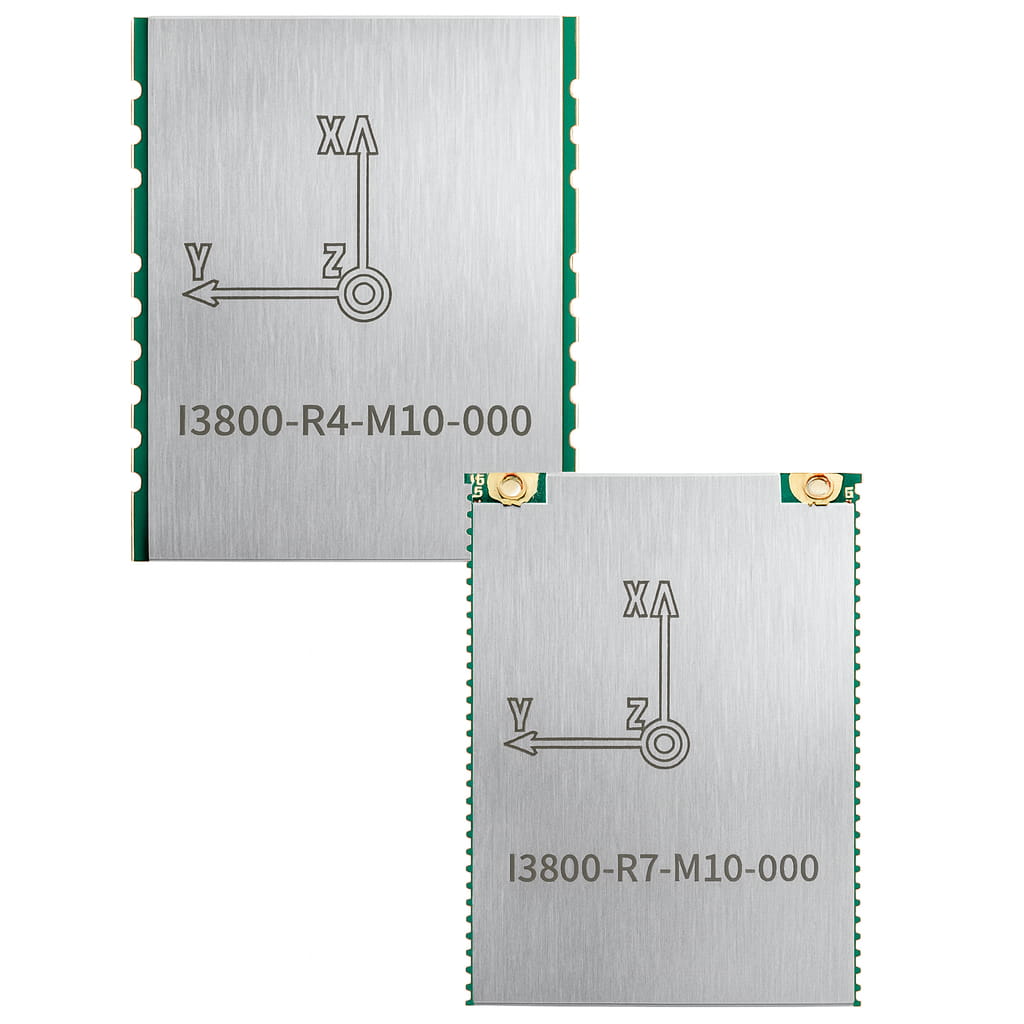

I3800
