China High Precision 3 Axis MEMS Inclinometer Sensor Dynamic Static Tilt Sensor Manufacturer

3 Axis MEMS Inclinometer Sensor Dynamic Static Tilt Sensor

The TD5-DI is a digital three-axis X, Y, Z direction tilt angle sensor (referred to as "tilt angle sensor") developed domestically by Micro-Magic Inc for component tilt angle measurement module. It integrates industrial standard RTU Modbus and 0x68 hexadecimal protocols; Domestic components account for over 85%, with internal core components including MCU microcontrollers, AD modules, signal processors, power circuits, output circuits, etc. To manufacture domestically produced equipment and overcome barriers to independent research and development technology.

Dynamic MEMS Inclinometer Sensor Dual Axis Tilt Sensor

The TD6-DI is a new generation MEMS dynamic tilt sensor that can measure tilt data of moving carriers or strong vibration states. Dynamic measurement accuracy of 0.5°, static accuracy of 0.06°, small size, low power consumption, high consistency and stability, output RS232, RS485, RS422, Modbus, TTL, CAN optional; Built in MCU control system, vertical gyroscope and accelerometer, integrated attitude solver, using optimal digital filtering algorithm to reduce noise, combined with N-order Kalman filtering algorithm, eliminating error sources and improving measurement accuracy through various compensations such as nonlinear compensation, orthogonal compensation, temperature drift, etc.

High Performance Dynamic MEMS Inclinometer Sensor Dual Axis Tilt Sensor

The TD7-DI is a new generation high-performance tilt sensor launched by Micro-Magic Inc, which can maintain high precision in complex movements with a small size. It has a dynamic measurement accuracy of 0.3°, a stable accuracy of 0.05°, and a temperature drift of 0.01°/℃. The output interfaces RS232, RS485, RS422, Modbus, TTL, and CAN buses are optional, making it easy to integrate into user control systems.

High Precision 3 Axis MEMS Inclinometer Sensor Dynamic Static Tilt Sensor

The TD9-DI is a digital three-axis X, Y, and Z tilt angle sensor (referred to as the "tilt angle sensor") developed domestically by Micro-Magic Inc for high-precision tilt angle measurement modules. It integrates industrial standard RTU Modbus and 0x68 hexadecimal protocols; The accompanying computer analysis software can display and record measurement data in real-time for analysis. Domestic components account for over 85%, with internal core components including MCU microcontrollers, high-precision 16 bit A/D modules, temperature sensors, signal processors, power circuits, output circuits, etc. To manufacture domestically produced equipment and overcome barriers to independent research and development technology.

Parameter	Conditions	TD9-DI		Unit
Measuring axis	axis	X, Y, Z
Measuring range		±90（Three-axis）	±180（single-axis）	°
Accuracy	Static	0.02	0.05	°
Accuracy	Dynamic	0.1	0.2	°
Sensitivity temperature coefficient	-40～85°	≤200		ppm/℃
Frequency response	DC response	100		Hz
Power-on start time		0.2		s
Response time		0.01		s
Automatic output rate	5Hz output, 15Hz, 35Hz, 50Hz can be set (RS485 does not have this function) Output signal RS232

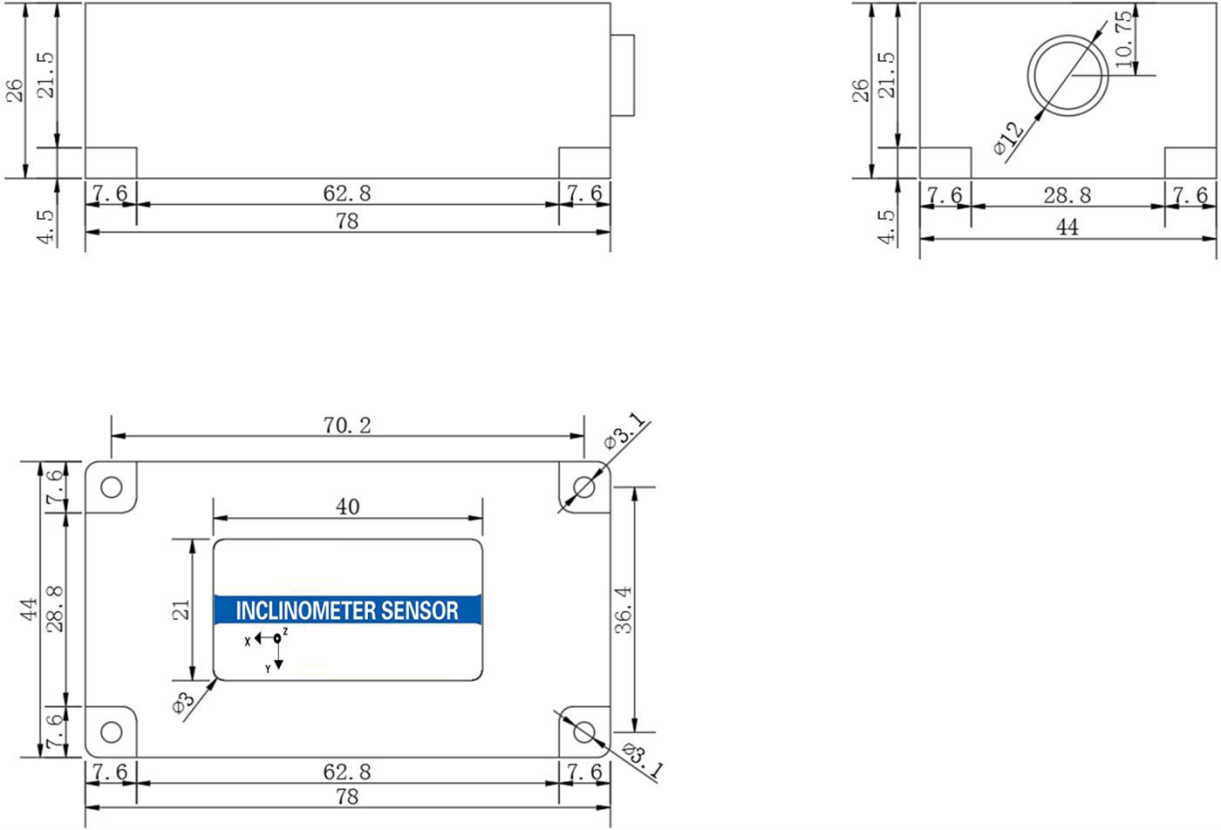

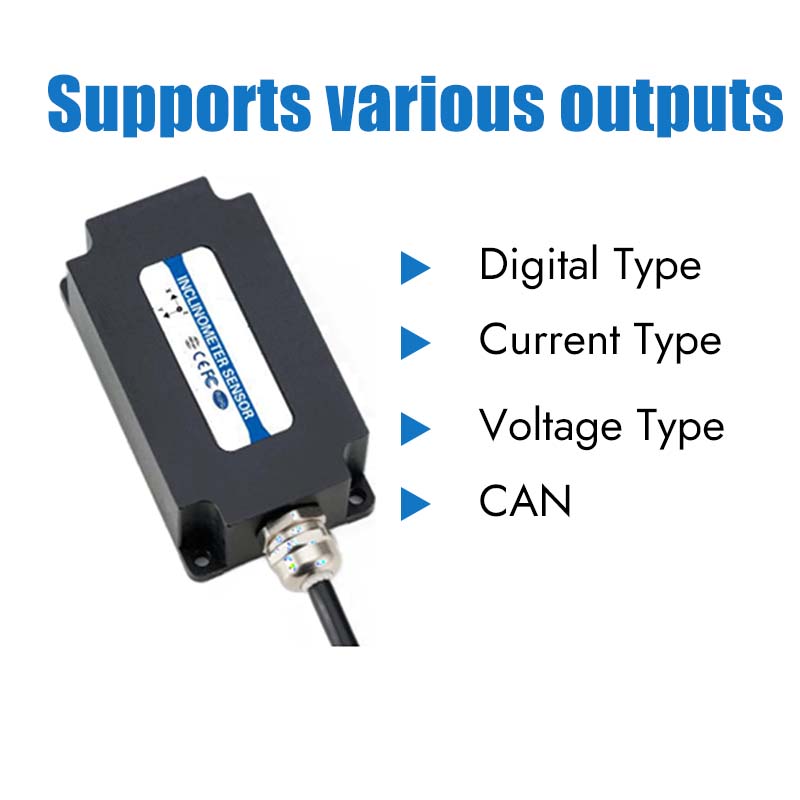

Output signal	RS232/RS485/RS422/TTL/MODBUS can be ordered
Average working hours	≥50000 hours/time
Impact resistance	5500g, 0.5ms, 3 times/axis
Anti-vibration	10grms、10～1000Hz
Insulation resistance	≥100MΩ
Waterproof level	IP67
Cable	Standard 1.5 meter-length, wear-resistant, oil-proof, wide temperature, shielded cable 6*0.3mm2
Weight	80g (excluding packaging box)
