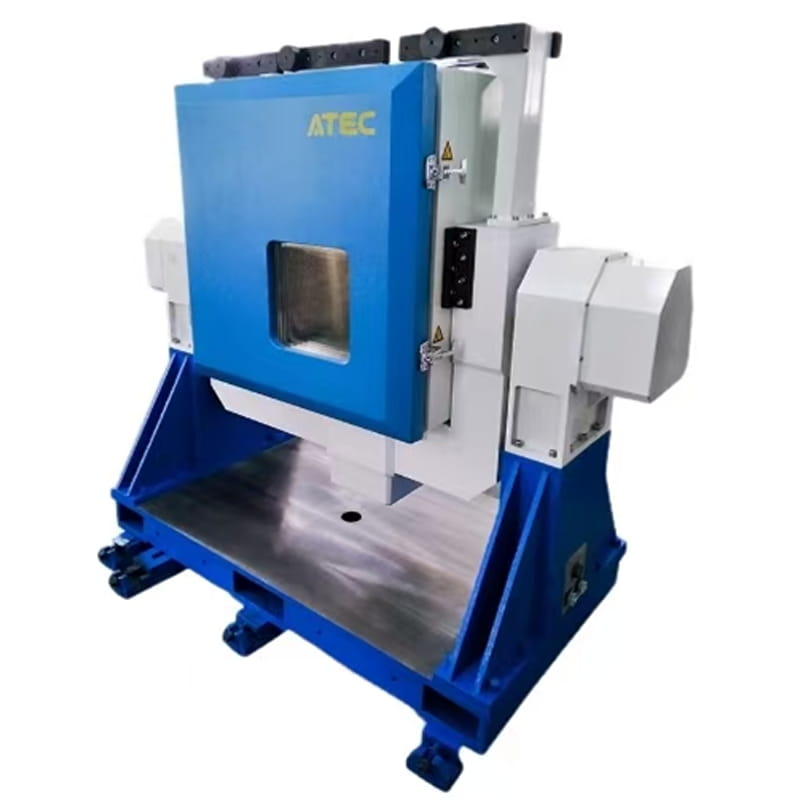

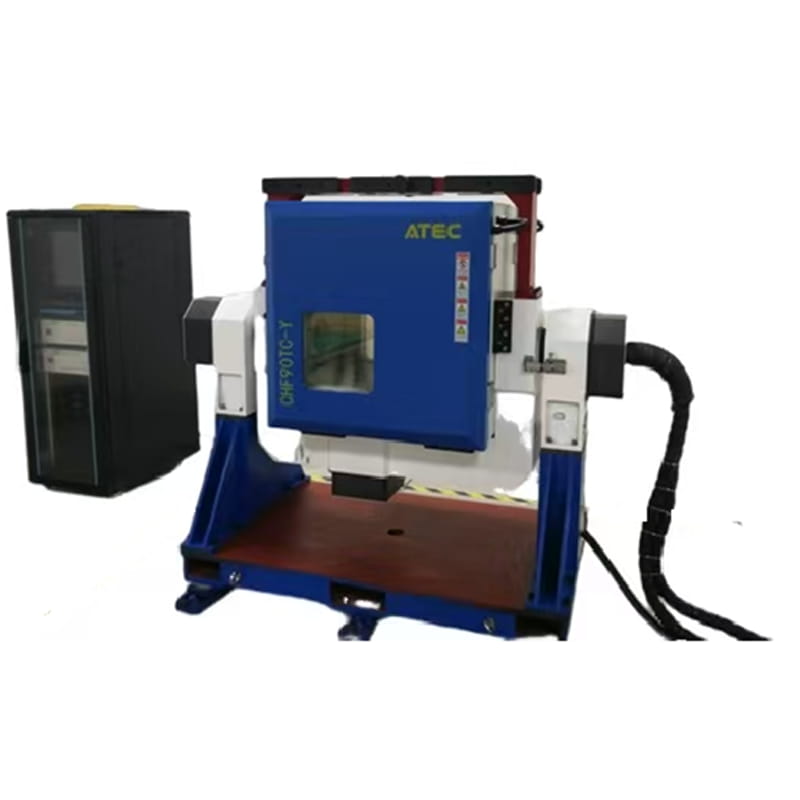

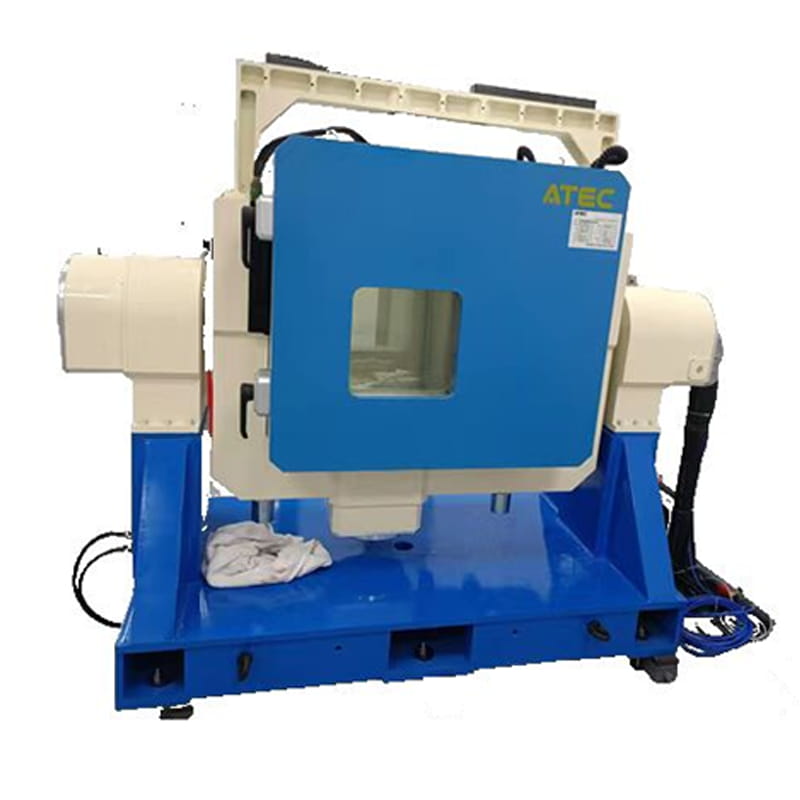

The dual axis temperature control test turntable consists of a mechanical platform, a control cabinet, and connecting cables, and has the function of providing dynamic performance indicators and functional testing for the tested products in pitch and azimuth directions.
Part No, :
T2G400PR-2M、T2G500PR-2M、T2G550PR-2MOrder(MOQ) :
1Product Series and Parameters
| Parameter | T2G400PR-2M | T2G500PR-2M | T2G550PR-2M |
| Structural type | U-T | U-T | U-T |
| Table size | φ400 | φ500 | φ550 |
| Maximum load weight | 5KG~50KG | 5KG~50KG | 5KG~50KG |
| Mesa flatness | 0.02mm | 0.02mm | 0.02mm |
| Table jumping | 0.02mm | 0.02mm | 0.02mm |
| Rotation accuracy | Inner loop: ± 1″~± 5″ Outer ring: ± 3″~± 10″ |
Inner loop: ± 1″~± 5″ Outer ring: ± 3″~± 10″ |
Inner loop: ± 1″~± 5″ Outer ring: ± 3″~± 10″ |
| Angular position range | 0~360 ° continuous rotation | 0~360 ° continuous rotation | 0~360 ° continuous rotation |
| Angular position accuracy | Inner loop: ± 1″~± 10″ Outer ring: ± 3″~± 10″ |
Inner loop: ± 1″~± 10″ Outer ring: ± 3″~± 10″ |
Inner loop: ± 1″~± 10″ Outer ring: ± 3″~± 10″ |
| Repetitive angular position | Inner loop: ± 1″~± 5″ Outer ring: ± 3″~± 7″ |
Inner loop: ± 1″~± 5″ Outer ring: ± 3″~± 7″ |
Inner loop: ± 1″~± 5″ Outer ring: ± 3″~± 7″ |
| Angular rate range | Inner ring: 0.001~1500°/s Outer ring: 0.001~300°/s |
Inner ring: 0.001~1500°/s Outer ring: 0.001~300°/s |
Inner ring: 0.001~1500°/s Outer ring: 0.001~300°/s |
| Angular rate accuracy and stability | (1° average) 5×10-3 (10° average) 5×10-4 (360° average) 5×10-5 |
(1° average) 5×10-3 (10° average) 5×10-4 (360° average) 5×10-5 |
(1° average) 5×10-3 (10° average) 5×10-4 (360° average) 5×10-5 |
| Maximum angular acceleration | Inner ring: 1500°/s ² Outer ring: 300°/s ² |
Inner ring: 1500°/s ² Outer ring: 300°/s ² |
Inner ring: 1500°/s ² Outer ring: 300°/s ² |
| Way of working | Speed, Position, Sway | Speed, Position, Sway | Speed, Position, Sway |
| Slip ring | 30 rings (optional) | 30 rings (optional) | 30 rings (optional) |
| MTBF | ≥2000 | ≥2000 | ≥2000 |
| Continuous working hours | ≥ 12 hours | ≥ 12 hours | ≥ 12 hours |
| Communication interface | RS422/RS232/Ethernet (optional) | RS422/RS232/Ethernet (optional) | RS422/RS232/Ethernet (optional) |
| Temp Chamber indicators | |||
| Internal cavity size: | 500×500×500mm | 6000×600×600mm | 650×650×650mm |
| Temp control range | -60~150 ℃ (optional) | -60~150 ℃ (optional) | -60~150 ℃ (optional) |
| Ramp rate | ± 2 ℃~± 5 ℃ (optional) | ± 2 ℃~± 5 ℃ (optional) | ± 2 ℃~± 5 ℃ (optional) |
| Temp fluctuation | ± 0.3 ℃~± 1 ℃ (optional) | ± 0.3 ℃~± 1 ℃(optional) | ± 0.3 ℃~± 1 ℃ (optional) |
| Temp uniformity | ≤2℃ | ≤2℃ | ≤2℃ |
| Temp deviation | ≤±2℃ | ≤±2℃ | ≤±2℃ |
| Dry wind blowing | optional | optional | optional |
| Bandwidth | Inner ring: 10Hz (adjustable) Outside ring: 5Hz (adjustable) |
Inner ring: 10Hz (adjustable) Outside ring: 5Hz (adjustable) |
Inner ring: 10Hz (adjustable) Outside ring: 5Hz (adjustable) |
| Loading size | φ300*400 | φ350*450 | φ500*500 |
