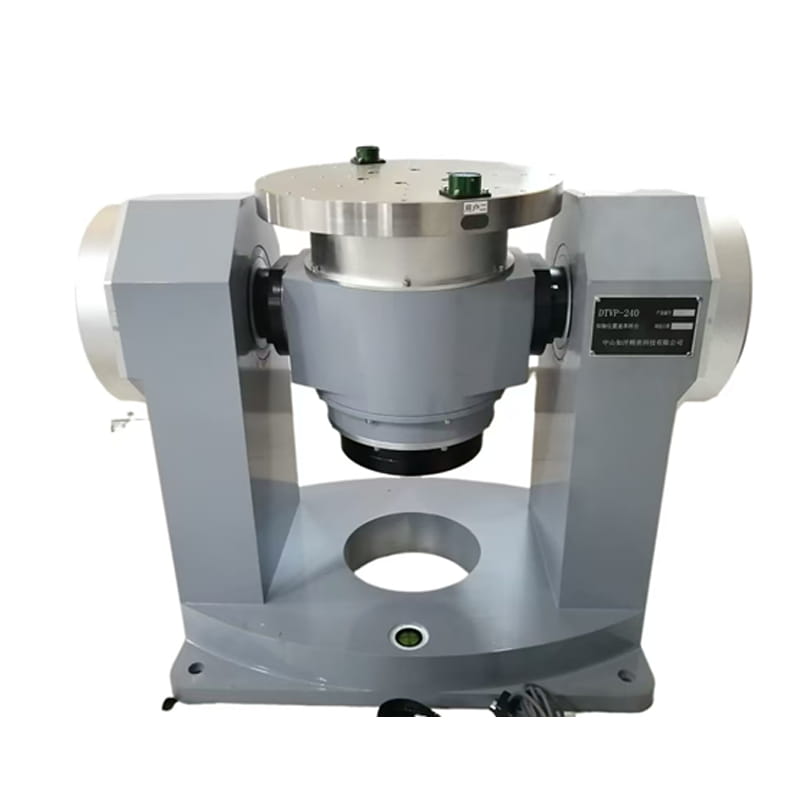

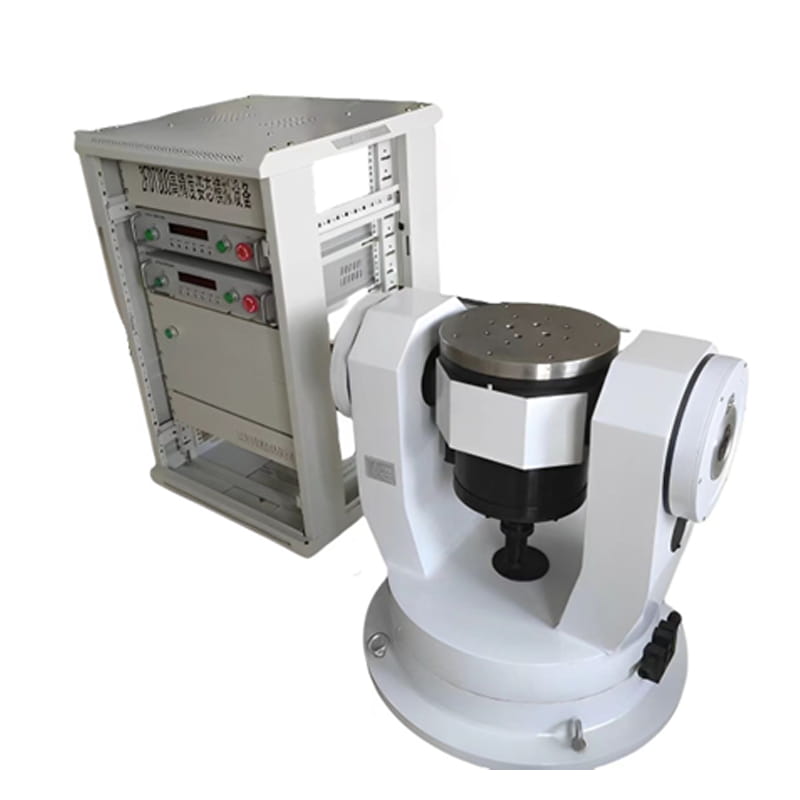

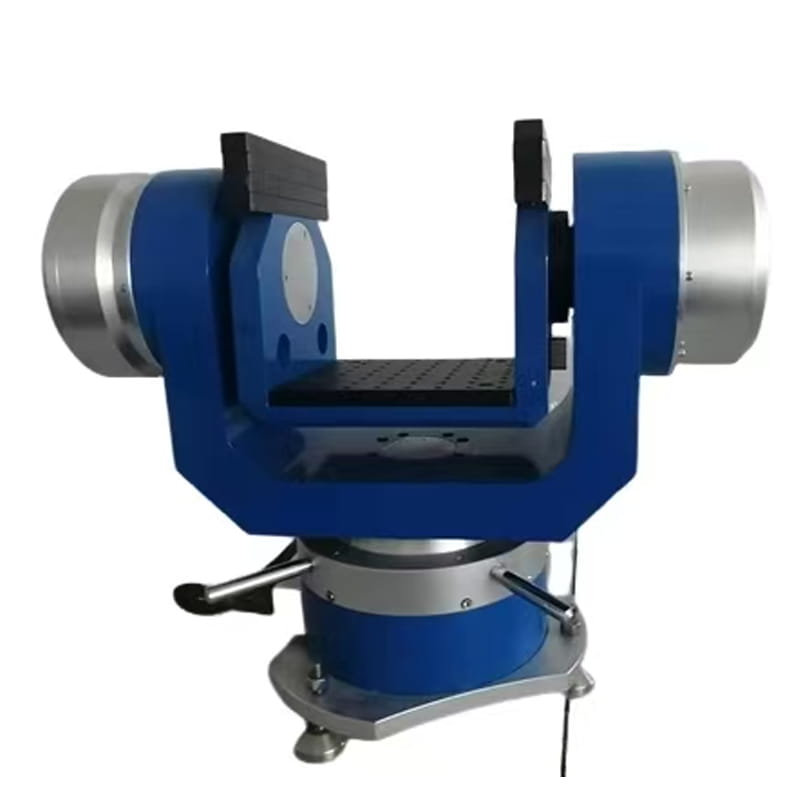

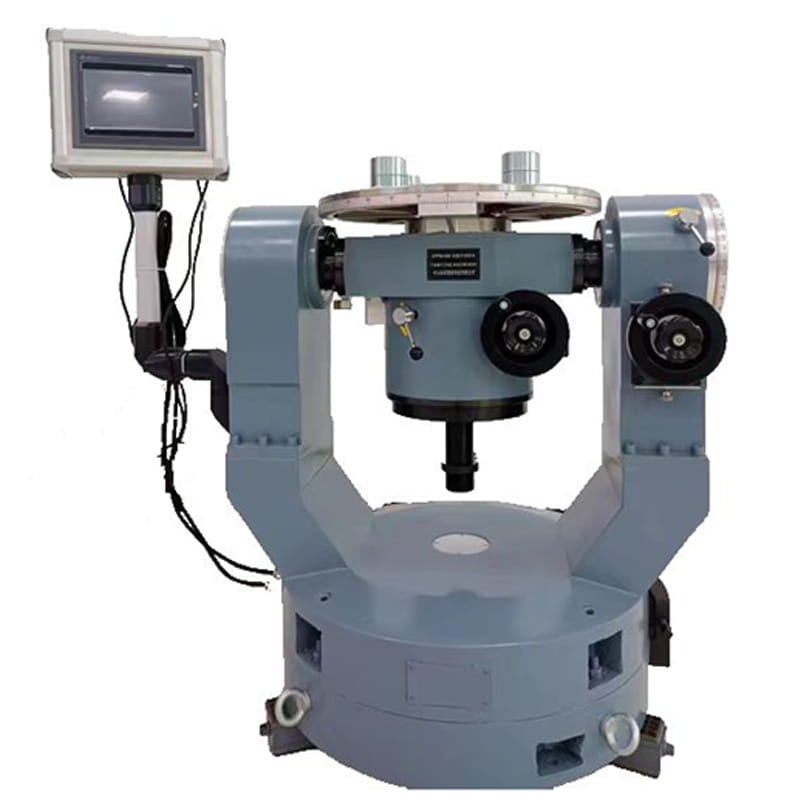

The dual axis testing turntable consists of two main parts: a mechanical platform and a measurement and control system. It adopts a U-T or U-O structure and a precision mechanical shaft system, with position, velocity, and low-frequency sinusoidal oscillation motion.
Part No, :
T2G400PR-2、T2G450PR-2、T2G500PR-2、T2G400PR-2K、T2G500PR-2Order(MOQ) :
1Product Series and Parameters
| Parameter | T2G400PR-2 | T2G450PR-2 | T2G500PR-2 | T2G400PR-2K | T2G500PR-2 |

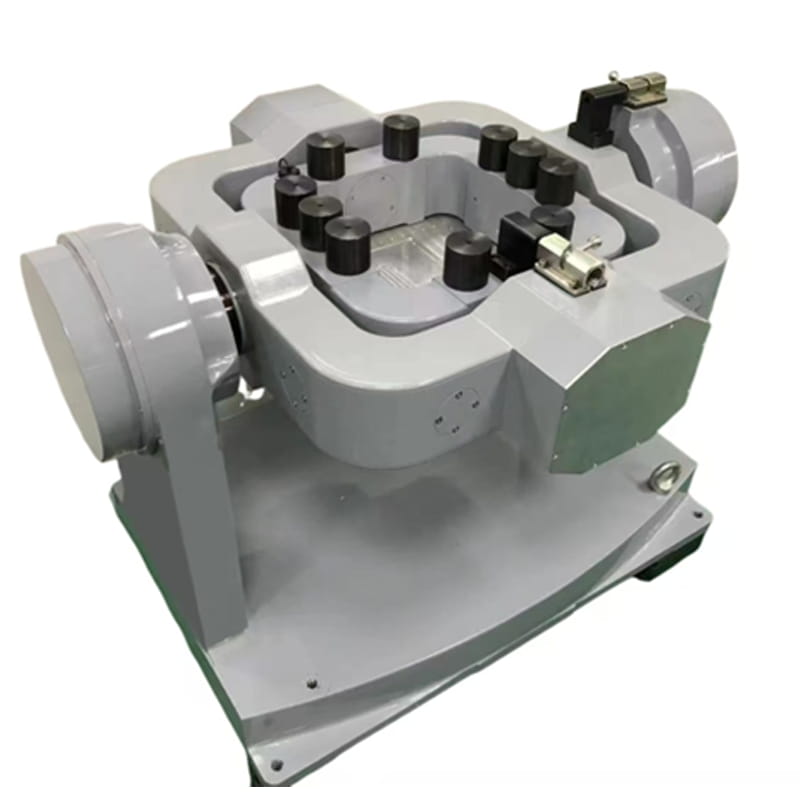

| Structural type | U-T (outer ring azimuth, inner pitch) | U-T | U-T | U-0 (frame type) | U-T |
| Table size | φ400 | φ450 | φ500 | φ400 | φ500 |
| Maximum load weight | 5~40KG | 5~40KG | 5~40kg | 5kg~40KG | 5~40kg |
| Mesa flatness | 0.02mm | 0.02mm | 0.02mm | 0.02mm | 0.02mm |
| Table jumping | 0.02mm | 0.02mm | 0.02mm | 0.02mm | 0.02mm |
| Rotation accuracy | Inner loop: ± 2~± 5″ Outer ring: ± 1~± 5″ |
Inner ring: ± 1~± 5″ Outer ring: ± 2~± 5 inches |
Inner ring: ± 1~± 5″ Outer ring: ± 2~± 5 inches |
Inner loop: ± 2~± 5″ Outer ring: ± 2~± 5 inches |
Inner ring: ± 1~± 5″ Outer ring: ± 2~± 5 inches |
| Angular position range |
0~360° continuous rotation |
0~360° continuous rotation |
0~360° continuous rotation |
0~360° continuous rotation |
0~360° continuous rotation |
| Angular position accuracy | Inner ring: ± 2~± 10″ Outer ring: ± 1~± 10″ |
Inner ring: ± 1~± 10″ Outer ring: ± 2~± 10″ |
Inner ring: ± 1~± 10″ Outer ring: ± 2~± 10″ |
Inner ring: ± 1~± 10″ Outer ring: ± 2~± 10″ |
Inner ring: ± 3~± 10″ Outer ring: ± 5~± 10″ |
| Repetitive angular position | Inner ring: ± 1~± 7 ″ Outer ring: ± 1~± 7 ″ |
Inner ring: ± 1~± 7 ″ Outer ring: ± 1~± 7 ″ |
Inner ring: ± 1~± 7 ″ Outer ring: ± 1~± 7 ″ |
Inner ring: ± 1~± 7 ″ Outer ring: ± 1~± 7 ″ |
Inner ring: ± 3~± 7 ″ Outer ring: ± 3~± 7 ″ |
| Angular rate range | Inner ring: 0.001 °~800 °/s Outer ring: 0.001 °~500 °/s |
Inner ring: 0.001 °~1000 °/s Outer ring: 0.001 °~500 °/s |
Inner ring: 0.001 °~1000 °/s Outer ring: 0.001 °~500 °/s |
Inner ring: 0.001 °~1000 °/s Outer ring: 0.001 °~500 °/s |
NA |
| Angular rate accuracy and stability | (1° average) 5×10-3 (10° average) 5×10-4 (360° average) 5×10-5 |
(1° average) 5×10-3 (10° average) 5×10-4 (360° average) 5×10-5 |
(1° average) 5×10-3 (10° average) 5×10-4 (360° average) 5×10-5 |
(1° average) 5×10-3 (10° average) 5×10-4 (360° average) 5×10-5 |
NA |
| Maximum angular acceleration | Inner ring: 1000°/s² Outer ring: 500°/s² |
Inner ring: 5000°/s² Outer ring: 1000°/s² |
Inner ring: 5000°/s² Outer ring: 1000°/s² |
Inner ring: 5000°/s² Outer ring: 1000°/s² |
NA |
| Way of working | Speed, Position, Sway | Speed, Position, Sway | Speed, Position, Sway | Speed, Position, Sway | Position |
| Slip ring | 30 rings (optional) | 30 rings (optional) | 30 rings (optional) | 30 rings (optional) | 30 rings (optional) |
| MTBF | ≥2000 | ≥2000 | ≥2000 | ≥2000 | ≥2000 |
| Bandwidth | Inner ring: 10Hz (adjustable) Outside ring: 5Hz (adjustable) |
Inner ring: 10Hz (adjustable) Outside ring: 5Hz (adjustable) |
Inner ring: 10Hz (adjustable) Outside ring: 5Hz (adjustable) |
Inner ring: 10Hz (adjustable) Outside ring: 5Hz (adjustable) |
Inner ring: 10Hz (adjustable) Outside ring: 5Hz (adjustable) |
| Loading size | φ300*300 | φ400*300 | φ450*300 | φ300*250 | φ450*400 |
| Continuous working hours | ≥ 12 hours | ≥ 12 hours | ≥ 12 hours | ≥ 12 hours | ≥ 12 hours |
| Communication interface | RS422/RS232/Ethernet (optional) | RS422/RS232/Ethernet (optional) | RS422/RS232/Ethernet (optional) | RS422/RS232/Ethernet (optional) | RS422/RS232/Ethernet (optional) |
