C9000-D

C9000-D

C9000-D is a high-precision all attitude 3D electronic compass launched by Micro-Magic Inc Hi-Tech Company, integrating digital signal RS232 output and analog 4-20mA, 0-5V output, IP67 waterproof level. It uses advanced hard and soft iron calibration algorithms to provide high-precision heading information within the range of 360 ° roll and+/-90 ° full tilt angle. C9000-D has been specially optimized for applications in the petroleum inclinometer field, making it very suitable for inclinometer systems. It can manually or automatically output tilt angle, azimuth angle, and tool surface angle information, and can also output the current magnetic field component size. Users only need to connect C9000-D to the data transmission circuit to form a high-precision inclinometer.

Part No, :
C9000-D
Order(MOQ) :
1
Output mode :
RS232/RS485/TTL/RS422 (optional)
Widely operating temperature :
-40～+85℃
Size :

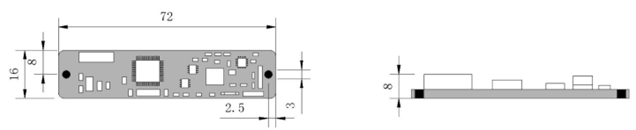

(72*16*8mm) (can be customized)
Protection level :
IP66 (IP67 customized)
Voltage input :
DC+5V(DC 9~36V can be customized)

Inquire Now

Download

RELATED PRODUCTS

C9-A

C9-A is a high-precision 3D electronic compass launched by Micro-Magic Inc Hi-Tech Company, which introduces advanced 3D compensation patent technology from the United States, allowing accurate heading data to be provided even at a product tilt angle of ± 40 °. The product has a small size, low power consumption, and can be applied in many fields such as antenna stability, vehicles, and system integration. Its high seismic resistance and reliability also enable the compass to work normally in extremely harsh environments, making it more suitable for today's miniaturized high-precision measurement and integrated control systems.

C9-B

C9-B is a high-precision two-dimensional (2D) electronic compass launched by Micro-Magic Inc Hi-Tech Company, which measures azimuth angles from 0 to 360 °. It is equipped with American patented technology, an industrial grade microcontroller with high reliability and strong anti-interference ability, and a high-precision magnetic sensor and driver chip. It integrates hard magnetic interference and soft magnetic interference compensation technology. It can be customized according to customer needs and can easily and quickly integrate electronic compass functions into various products.

C9-C

C9-C is a high-precision two-dimensional electronic compass launched by Micro-Magic Inc Hi-Tech Company, which measures azimuth angles from 0 to 360 °. It is equipped with American patented technology, an industrial grade microcontroller with high reliability and strong anti-interference ability, and a high-precision magnetic sensor and driver chip. It integrates hard magnetic interference and soft magnetic interference compensation technology. It can be customized according to customer needs and can easily and quickly integrate electronic compass functions into various products.

C90-A

C90-A is a high-precision 3D electronic compass using advanced hard and soft iron calibration algorithms to provide high-precision heading information within a 65 ° angle range. It has the characteristics of small size and low power consumption, making it more suitable for power volume sensitive measurement systems. This product comes with hard magnetic, soft magnetic, and tilt compensation, and the compass outputs high-precision measurement values after calibration. The three-axis fluxgate integrated with patented technology calculates the heading in real-time through the central processor, and uses a three-axis accelerometer to compensate for the tilt angle, enabling it to provide accurate heading data even in extremely harsh environments.

C90-B

C90-B is a high-precision all attitude 3D electronic compass  using advanced hard and soft iron calibration algorithms to provide high-precision heading information within a range of 360 ° roll and+/-90 ° full tilt angle. It has the characteristics of small size and low power consumption, making it more suitable for power volume sensitive measurement systems. This product comes with hard magnetic, soft magnetic, and tilt compensation, and the compass outputs high-precision measurement values after calibration. The three-axis fluxgate integrated with patented technology calculates the heading in real-time through the central processor, and uses a three-axis accelerometer to compensate for the tilt angle, enabling it to provide accurate heading data even in extremely harsh environments.

C90-C

C90-C is a high-precision all attitude 3D electronic compass, using advanced hard and soft iron calibration algorithms to provide high-precision heading information within a range of 360 ° roll and+/-90 ° full tilt angle. It has the characteristics of small size and low power consumption, making it more suitable for power volume sensitive measurement systems. The precise attitude of the product output carrier can be used in systems with full attitude rotation. This product comes with hard magnetic, soft magnetic, and tilt compensation, and the compass outputs high-precision measurement values after calibration

C900-A

C900-A is a high-precision 3D electronic compass using advanced hard and soft iron calibration algorithms to provide high-precision heading information within 80 ° angle range. It has the characteristics of small size and low power consumption, making it more suitable for power volume sensitive measurement systems. This product comes with hard magnetic, soft magnetic, and tilt compensation, and the compass outputs high-precision measurement values after calibration. The three-axis fluxgate integrated with patented technology calculates the heading in real-time through the central processor, and uses a three-axis accelerometer to compensate for the tilt angle, enabling it to provide accurate heading data even in extremely harsh environments.

C900-B

C900-B is a high-precision 3D electronic compass using advanced hard and soft iron calibration algorithms to provide high-precision heading information within 80 ° angle range. It has the characteristics of small size and low power consumption, making it more suitable for power volume sensitive measurement systems. This product comes with hard magnetic, soft magnetic, and tilt compensation, and the compass outputs high-precision measurement values after calibration. The three-axis fluxgate integrated with patented technology calculates the heading in real-time through the central processor, and uses a three-axis accelerometer to compensate for the tilt angle, enabling it to provide accurate heading data even in extremely harsh environments.

C9000-A

C9000-A is a high-precision 6-axis full attitude electronic compass launched by Micro-Magic Inc Hi-Tech Company. It is cylindrical and consists of an industrial grade microcontroller with high reliability and strong anti-interference ability, as well as high-precision inclination sensors, magnetic sensors, and driving chips. The independently developed hard and soft magnetic calibration algorithms enable the compass to eliminate the influence of magnetic fields even in environments with magnetic field interference through calibration algorithms; The patented inclination compensation algorithm compensates for the heading of a large range of inclination angles.

C9000-B

C9000-B is a high-precision 6-axis full attitude electronic compass launched by Micro-Magic Inc Hi-Tech Company. It is a rectangular shape with a width of only 1.9cm and consists of an industrial grade microcontroller with high reliability and strong anti-interference ability, as well as high-precision inclination sensors, magnetic sensors, and driving chips. The independently developed hard and soft magnetic calibration algorithms enable the compass to eliminate the influence of magnetic fields even in environments with magnetic field interference through calibration algorithms; The patented inclination compensation algorithm compensates for the heading of a large range of inclination angles.

C9000-CD

C9000-CD is a high-precision all attitude 3D electronic compass using advanced hard and soft iron calibration algorithms to provide high-precision heading information within a range of 360 ° roll and+/-90 ° full tilt angle. It has the characteristics of small size and low power consumption, making it more suitable for power volume sensitive measurement systems. The product comes with hard magnetic, soft magnetic, and tilt compensation, and the compass outputs high-precision measurement values after calibration. The three-axis fluxgate integrated with patented technology calculates the heading in real-time through the central processor, and uses a three-axis accelerometer to compensate for the tilt angle, enabling it to provide accurate heading data even in extremely harsh environments.

C9000-D

C9000-D is a high-precision all attitude 3D electronic compass launched by Micro-Magic Inc Hi-Tech Company, integrating digital signal RS232 output and analog 4-20mA, 0-5V output, IP67 waterproof level. It uses advanced hard and soft iron calibration algorithms to provide high-precision heading information within the range of 360 ° roll and+/-90 ° full tilt angle. C9000-D has been specially optimized for applications in the petroleum inclinometer field, making it very suitable for inclinometer systems. It can manually or automatically output tilt angle, azimuth angle, and tool surface angle information, and can also output the current magnetic field component size. Users only need to connect C9000-D to the data transmission circuit to form a high-precision inclinometer.

T7-A

The T7-A series is a new generation of digital small-volume Micro-Magic Inc inclination sensors launched by MXMW Hi-Tech Company. It has a built-in dual-channel earth gravity inclination unit that measures dynamic gravity acceleration and converts it into inclination angle changes. This allows measurement of the roll and pitch angles of the sensor output relative to the horizontal plane. It has output mode as RS232, RS485, RS422, Modbus, TTL level interface standard optional. Due to the built-in MCU control system, the linearity of the sensor output is corrected twice, which makes up for the decrease in accuracy caused by insufficient correction of the analog type.

T700-B

The T700-B is a digital output (X, Y, Z) three-axis inclination sensor with a built-in high-precision 16bit A/D converter, and through an n-order filtering algorithm, the final output X, Y, Z inclination values. Output interface has RS232, RS485, RS422, TTL, Modbus, and Canopen optional. The product can correct the sensor temperature drift based on the temperature changes monitored by the built-in temperature sensor to ensure the repeatability of the product in low and high temperature environments. Output corresponding frequency 100HZ. The product is good for dangerous building monitoring.

T700-C

The T700-C is a digital output (X, Y, Z) three-axis inclination sensor with a built-in high-precision 16bit A/D converter, and through an n-order filtering algorithm, the final output X, Y, Z inclination values. Output interface has RS232, RS485, RS422, TTL, Modbus, and Canopen optional. The product can correct the sensor temperature drift based on the temperature changes monitored by the built-in temperature sensor to ensure the repeatability of the product in low and high temperature environments. Output corresponding frequency 100HZ.

T700-D

T700-D is a digital output (X, Y, Z) three-axis inclination sensor launched by Micro-Magic Inc Hi-Tech Company for the field of industrial field control. It has a built-in high-precision 16bit A/D converter, and through an n-order filtering algorithm, it finally outputs X, Y, Z-axis inclination angle value. The output interfaces RS232, RS485, RS422, TTL, Modbus and CAN bus are optional. The product can correct the sensor temperature drift based on the temperature changes monitored by the built-in temperature sensor to ensure the repeatability of the product in low and high temperature environments. Output corresponding frequency 100HZ.

T700-G

The T700-G series is a digital output dual axis tilt sensor, equipped with a high-precision 16bit A/D converter and outputs the dual axis tilt value through an n-order filtering algorithm. The output interfaces RS232, RS485, RS422, TTL, Modbus, and CAN bus are optional. The product can correct sensor temperature drift based on the monitoring temperature changes of the built-in temperature sensor, ensuring the repeatability of the product in low and high temperature environments. Output the corresponding frequency of 100Hz.

C9-D

C9-D is a high-precision three-dimensional electronic compass launched by Micro-Magic Inc. It has self-developed core three-dimensional compensation algorithm technology, so that it can still provide accurate heading data even when the product is tilted at an angle of ±40°. The product is small in size and has low power consumption. It can be used in many fields such as antenna stabilization, vehicles, and system integration. Its high shock resistance and high reliability also allow the compass to work normally in extremely harsh environments, making it more suitable for today's miniaturized and high-voltage applications. Accurate measurement integrated control system.

C9000-CV

C9000-CV is a high-precision all attitude 3D electronic compass launched by Micro-Magic Inc, integrating digital signal RS232 output and analog 4-20mA, 0-5V output, IP67 waterproof level. It uses advanced hard and soft iron calibration algorithms to provide high-precision heading information within the range of 360 ° roll and+/-90 ° full tilt angle. C9000-CV has been specially optimized for applications in the petroleum inclinometer field, making it very suitable for inclinometer systems. It can manually or automatically output tilt angle, azimuth angle, and tool surface angle information, and can also output the current magnetic field component size. Users only need to connect C9000-CV to the data transmission circuit to form a high-precision inclinometer.

CG1000

CG1000 is a new generation of strapdown compass system for civilian ships. It uses advanced fiber optic gyroscope and strapdown calculation technology to autonomously measure the ship's angular motion, and has the ability to continuously provide the carrier's heading, pitch, roll and other information to the outside world, providing basic information support for ship navigation at sea. Fiber optic gyro compasses have the advantages of long lifespan, maintenance free, short start-up time, low cost, and no need for regular replacement of gyro balls, which can completely replace traditional gyro compasses.

Quick Contact

If you have any questions or need help,feel free to contact with our team

sales@memsmag.com tech_support@memsmag.com

+8618151836753

Add: Binjiang, Hangzhou, China.

Product Categories

Hot Tags

Subscibe To Newsletter

Please read on, stay posted, subscribe, and we welcome you to tell us what you think.

Xml Privacy Policy Blog Sitemap

leave a message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

home

products

Parameter		C9000-D
Compass heading parameters	Heading accuracy	0.3~0.5° (RMS, pitch<85°)
	Resolution	0.1°
	Repeatability	0.05°
Compass inclination parameters	Pitch accuracy	0.1°
	Roll accuracy	0.1° (pitch<65°) 0.2° (pitch<80°) 0.5° (pitch<86°)
	Inclination angle resolution	0.01°
	Inclination range	Pitch ±90°; Roll 360°
Calibration	Hard iron calibration	Yes
	Soft iron calibration	Yes
	Tilt calibration	Yes

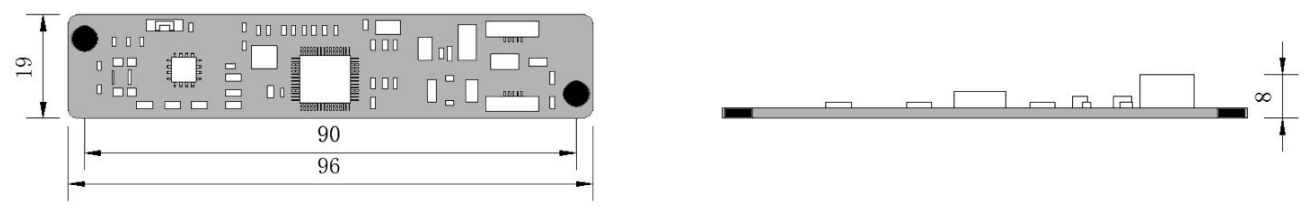

Physical properties	Size	L96W19H8 (mm)
