Parameter	Conditions	ACM-I00-2	ACM-I00-8	ACM-I00-40	Unit
Measuring range		±2	±8	±40	g
Bias calibration		<2	<5	<10	mg
Measuring axis	axis	X, Y, Z	X, Y, Z	X, Y, Z
Zero bias stability (yearly)		1.5(<5)	7.5(<25)	22(<75)	mg
Resolution threshold	@Hz	<1	<5	<15	mg
Bias temperature coefficient	-55～100°	0.1	0.5	1.5	mg/℃
Bandwidth		0~≥400	0~≥400	0~≥400	Hz
Resonance frequency		1.6	6.7	6.7	KHz
Output rate	5Hz, 15Hz, 35Hz, 50Hz can be set (RS485 does not have this function)
Output signal	RS232/RS485/RS422/TTL optional
Reliability	MIL-HDBK-217, Level 2
Impact resistance	20000g, 2ms, 1/2sine
Anti-vibration	10grms、10～1000Hz
Waterproof level	IP67
Cable	Standard 1.5m length, wear-resistant, oil-proof, wide temperature, shielded cable 5*0.2mm2
Weight	180g (excluding packaging box)
Connector	6-pin aviation plug
Capacitive loading	1000

Parameter	Condition	Minimum value	Typical value	Maximum value	Unit
Supply voltage		9	12	36	V
Supply voltage	customizable		5		V
Working current	no load		30		mA
Operating temperature		-40		+85	℃
Storage temperature		-55		+125	℃

Connector	Lead wire (1.5m) or waterproof aviation socket (customized)
Protection level	IP67
Material	Aluminum alloy frosted and oxidized
Installation	4 M4 screws

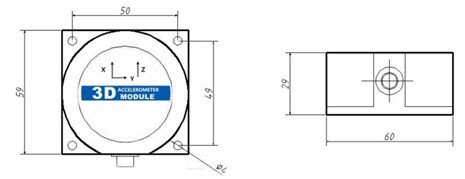

ACM-100
