3 Axis MEMS Inclinometer Sensor Dynamic Static Tilt Sensor

3 Axis MEMS Inclinometer Sensor Dynamic Static Tilt Sensor

The TD5-DI is a digital three-axis X, Y, Z direction tilt angle sensor (referred to as "tilt angle sensor") developed domestically by Micro-Magic Inc for component tilt angle measurement module. It integrates industrial standard RTU Modbus and 0x68 hexadecimal protocols; Domestic components account for over 85%, with internal core components including MCU microcontrollers, AD modules, signal processors, power circuits, output circuits, etc. To manufacture domestically produced equipment and overcome barriers to independent research and development technology.

  • Part No, :

    TD5

  • Order(MOQ) :

    1
Inquire Now
categories
New Products
  • Description

Product Series and Parameters

Parameter Conditions TD5-AC Unit
Measuring axis axis X, Y, Z
Measuring range   ±90（Three-axis） ±180（single-axis） °
Accuracy Static 0.1 0.2 °
  Dynamic 0.5 0.5 °
Sensitivity temperature coefficient -40～85° ≤200 ppm/℃
Frequency response DC response 100 Hz
Power-on start time   0.2 s
Response time   0.01 s
Automatic output rate   5Hz output, 15Hz, 35Hz, 50Hz can be set (RS485 does not have this function)
Output signal   RS232/RS485/RS422/TTL /MODBUS Can be ordered
Average working hours ≥50000 hours/time
Impact resistance 4500g, 0.5ms, 3 times/axis
Anti-vibration 10grms、10～1000Hz
Insulation resistance ≥100MΩ
Waterproof level IP67
Cable Standard 1.5 meter-length, wear-resistant, oil-proof, wide temperature, shielded cable 6*0.3mm2
Weight 75g (excluding packaging box)

Production process

More similar products

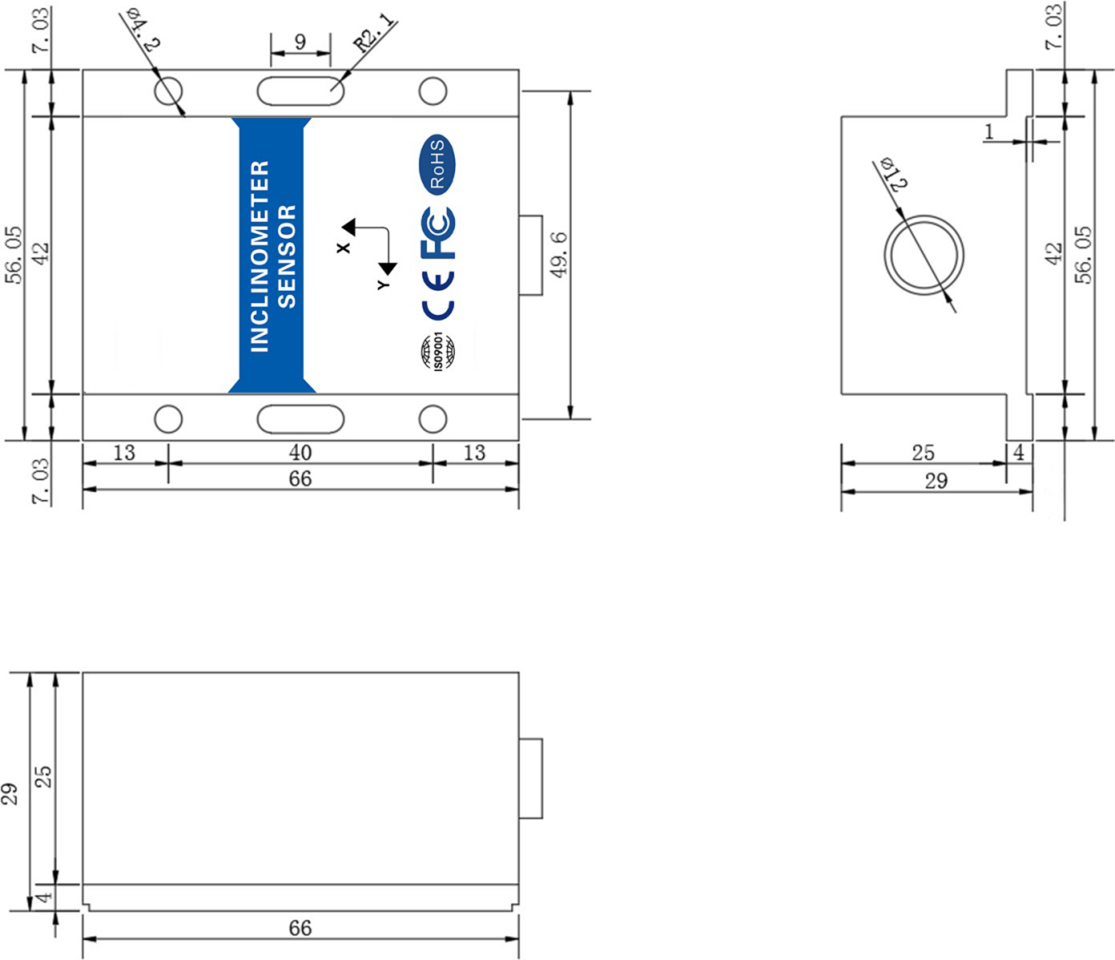

T7000 Dimensional Drawing

Product dimension



Application Scenarios

Inclination Sensor application
The TD5-DI is an industrial-grade three-axis digital tilt sensor designed for both dynamic and static inclination measurement. Integrating a three-axis accelerometer and gyroscope with advanced fusion algorithms, it automatically adapts to static and dynamic environments to deliver stable and reliable angle data across X, Y, and Z axes. With 0.1° static accuracy and 0.5° dynamic accuracy, it supports multiple output interfaces (RS232/RS485/RS422/TTL, Modbus optional), wide voltage input (9–36V), and operates in harsh conditions from -40 to +85°C with IP67 protection. Built for rugged applications, it is ideal for construction machinery control, vehicle stability monitoring, high-altitude platforms, photovoltaic tracking, and industrial automation systems.
Contact Us
inclination sensor for UAV
Railway and Bridge Monitoring
inclination sensor for Gimbal Leveling
Construction and Gimbal Leveling
MEMS accelerometers are used in autonomous driving
Autonomous Driving

FAQ

Q1:What is the main feature of this inclinometer?
A:This model is a three-axis dynamic & static inclinometer, capable of measuring tilt angles in X, Y, and Z directions for both stationary and moving environments.

Q2:What makes it suitable for dynamic applications?
A:The sensor uses a dynamic & static fusion algorithm:
Static mode → high stability
Dynamic mode → real-time motion tracking
This ensures reliable performance even under vibration or movement.


Q3:What is the accuracy?
A:Static accuracy: 0.1°–0.2°
Dynamic accuracy: 0.5°
Ideal for industrial equipment and mobile platforms.
